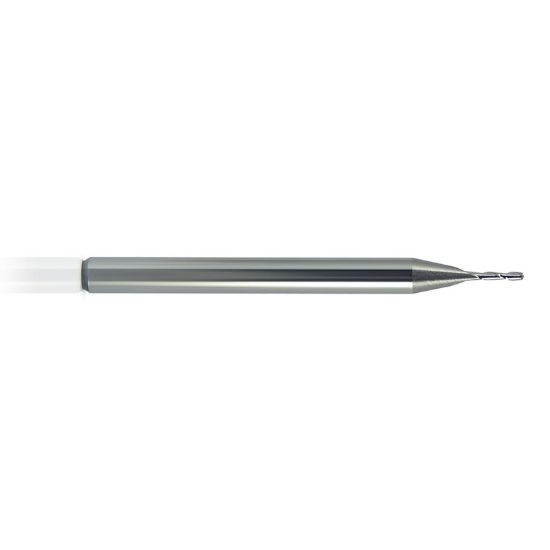

MELIN 15992 DIA 4.50MM SH 0.1969 LOC 0.5510 OAL2.007 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MEL15992
Delivery date: 3-5 days
$21.30
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Additional Key Information 1 End Mill
Additional Key Information 3 Standard Flute
Application Slot Milling, Face Milling, Side Milling
Shipping State Ohio/California
Material # Material#15, Material#10, Material#8, Material#17, Material#3
Additional Key Information 4 Standard Helix
Package Size 1
Performance Rating General Performance
Sold by Pieces 1
Additional Key Information 2 Sharp
Uncategorized
Made In USA Yes
Dimensional Specifications
Overall Len 2.0079 51.00MM
Length Of Cut 0.5510 14.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Finisher
Flutes/Inserts 2
Length Type Standard
Inch/Metric Metric
Single/Double End Single End
Cutter Dia 0.1771 4.50MM
Machine Side Connection Size 0.1969 5.00MM
Shank/Pilot Dia 0.1969 5.00MM
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
End Of Tool Shape Square
Dimension Description 0.177 x 0.197 x 0.551 x 2.008
Machine Side CYLINDRICAL0.1969
Helix Angle 30°
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
