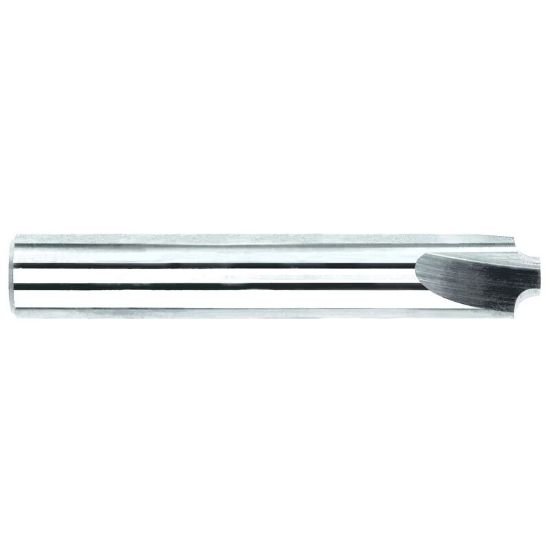

Picture of Melin 15416 Dia 1 Sh 1.00 Loc 1.50 Oal4.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.0600 1.52mm

Melin 15416 Dia 1 Sh 1.00 Loc 1.50 Oal4.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.0600 1.52mm

Part Number: MEL15416

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: 1002731
Vendor: Sussex Tool and Supply
$331.05

Melin end mill with standard flute and helix made in USA. Carbide uncoated cylindrical connection 1.0000 diameter. Corner radius 0.0600, 1.52mm. Machine side connection type cylindrical.

Key Details

Materials & Finish

  • Tool Material: Carbide

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Cylindrical
  • Machine Side (Toolpost): CYLINDRICAL1.0000

Grades & Coatings

  • Alternate Description: MELIN Standard Helix End Mill Carbide Uncoated Corner Radius 0.0600 1.52MM Standard Flute Flutes 4 Single End MELIN

Other Details

  • Brand: MELIN
  • Shipping State: OHIO,CALIFORNIA
  • Made In Usa: Yes

Technical Overview

What It Does

Cuts material with standard flute and helix. Designed for standard end mill operations. Used in machining with carbide tool material.

Composition

Carbide uncoated, cylindrical connection, standard flute, single end corner radius 0.0600 1.52mm.

Typical Uses

Machining operations in machine toolpost. Fits in Ohio and California shipping. Used with standard helix end mill design.

Products specifications
Attribute name Attribute value
Shipping State OHIO, CALIFORNIA
Cutter Type Solid End Mill
Made In USA YES
Cutting Edge Definition Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Cutting Edge Material Carbide
Tool Material Carbide
Machine Side (Toolpost) CYLINDRICAL1.0000
Machine Side (Toolpost) Connection Type Cylindrical
Overall Length 4.0000 101.60MM
Shank Or Pilot Diameter 1.0000 25.40MM
Family Group Melin
Coolant Thru Non Coolant
Mach Side Connection Size 1.0000 25.40MM
Tool Diameter 1.0000 25.40MM
Flutes Or Inserts 4
Length Type Standard
Performance Rating General Performance
Length Of Cut 1.5000 38.10MM
End Of Tool Shape Corner Radius
Cutter Style Carbide Bull Nose Finisher
Single Or Double End Single End
Corner Radius 0.0600 1.52MM
Inch Or Metric Inch
Helix Angle 30°
Center Cutting Center Cutting
