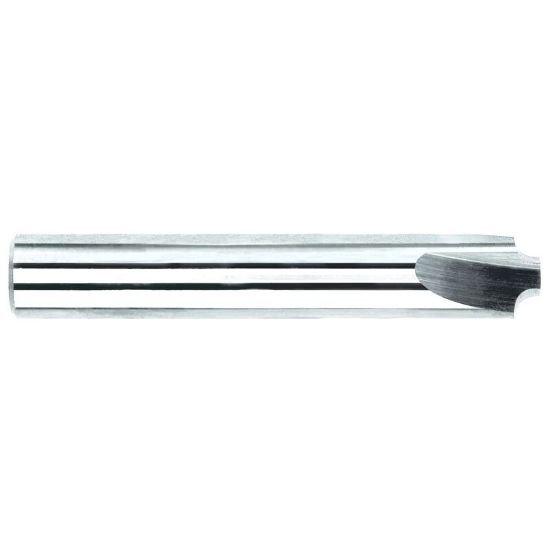

Picture of Melin 15103 Dia 6mm Sh 0.2362 Loc 0.7874 Oal2.4803 End Mill Standard Flute Variable Helix Carbide Nacroa Single End Corner Radius0.0197 0.50mm

Melin 15103 Dia 6mm Sh 0.2362 Loc 0.7874 Oal2.4803 End Mill Standard Flute Variable Helix Carbide Nacroa Single End Corner Radius0.0197 0.50mm

Part Number: MEL15103

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: 1001863
Vendor: Sussex Tool and Supply
$0.00

Melin 15103 carbide end mill with variable helix standard flute cylindrical connection corner radius 0.0197 made in usa nACRoA coated.

Key Details

Materials & Finish

  • Coating: nACRoA
  • Tool Material: Carbide

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Cylindrical
  • Machine Side (Toolpost): CYLINDRICAL0.2362

Grades & Coatings

  • Alternate Description: MELIN Variable Helix End Mill Carbide nACRoA Corner Radius 0.0197 0.50MM Standard Flute Flutes 5 Single End MELIN

Other Details

  • Brand: MELIN
  • Shipping State: OHIO,CALIFORNIA
  • Made In Usa: Yes

Technical Overview

What It Does

Cuts material with standard flute design. Features variable helix for smooth cutting. Used in milling operations with corner radius 0.0197.

Composition

Carbide tool material. nACRoA coating. Cylindrical connection 0.2362.

Typical Uses

Milling operations. Standard flute end mill use. Corner radius 0.019 in cutting tasks.

Products specifications
Attribute name Attribute value
Shipping State OHIO, CALIFORNIA
Cutter Type Solid End Mill
Made In USA YES
Cutting Edge Definition Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Cutting Edge Material Carbide
Tool Material Carbide
Machine Side (Toolpost) CYLINDRICAL0.2362
Machine Side (Toolpost) Connection Type Cylindrical
Overall Length 2.4803 63.00MM
Shank Or Pilot Diameter 0.2362 6.00MM
Family Group Melin
Coolant Thru Non Coolant
Coating nACRoA
Mach Side Connection Size 0.2362 6.00MM
Tool Diameter 0.2362 6.00MM
Flutes Or Inserts 5
Length Type Standard / With Neck
Performance Rating General Performance
Length Of Cut 0.7874 20.00MM
End Of Tool Shape Corner Radius
Cutter Style Carbide Bull Nose Finisher
Single Or Double End Single End
Corner Radius 0.0197 0.50MM
Inch Or Metric Metric
Helix Angle Variable
Center Cutting Center Cutting
Neck Length 1.0236 26.00MM
