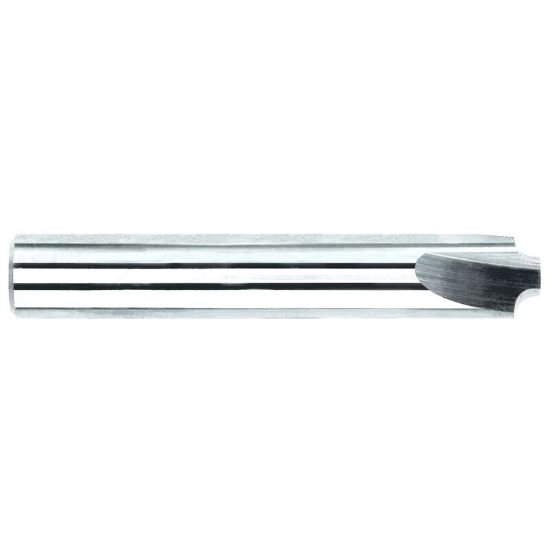

Picture of Melin 14339 Dia 3/16 SH 0.1875 LOC 0.6250 OAL2.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.0300 0.76mm

Melin 14339 Dia 3/16 SH 0.1875 LOC 0.6250 OAL2.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.0300 0.76mm

Part Number: MEL14339 0.188 x 0.188 x 0.625 x 2.500
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1249473
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

MELIN Standard Helix End Mill Carbide Uncoated Corner Radius 0.0300 0.76MM Standard Flute Flutes 3 Single End MELIN Carbide
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio/California
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 2.5000 63.50MM
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 3
Tool Dia 0.1875 4.76MM - 3/16
Length Of Cut 0.6250 15.88MM
Geometry & Angles
Corner Radius 0.0300 0.76MM
Helix Angle 30
Performance & Capacity
Cut Rating Graphite, Aluminum, Plastic
Performance Rating General Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
