  • MELIN 11816 DIA 3/16 SH 0.1875 LOC 0.50 OAL2.2500 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Square Sharp

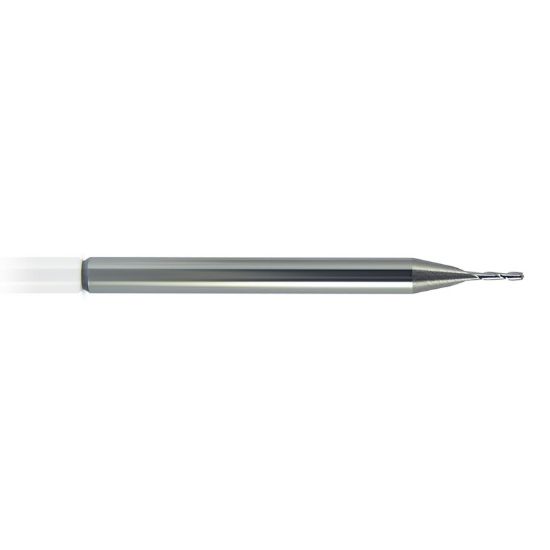

Picture of MELIN 11816 DIA 3/16 SH 0.1875 LOC 0.50 OAL2.2500 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Square Sharp

MELIN 11816 DIA 3/16 SH 0.1875 LOC 0.50 OAL2.2500 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Square Sharp

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MEL11816
Delivery date: 3-5 days
$25.33
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#10, Material#17, Material#8, Material#15, Material#3
Performance Rating General Performance
Additional Key Information 4 Standard Helix
Package Size 1
Application Counterboring, Face Milling, Shoulder Milling, Slot Milling
Shipping State Ohio/California
Sold by Pieces 1
Additional Key Information 1 End Mill
Additional Key Information 2 Sharp
Additional Key Information 3 Standard Flute
Uncategorized
Made In USA Yes
Dimensional Specifications
Machine Side Connection Size 0.1875 4.76MM
Dimension Description 0.188 x 0.188 x 0.500 x 2.250
Cutter Dia 0.1875 4.76MM - 3/16
Machine Side WELDON0.1875
End Of Tool Shape Square
Inch/Metric Inch
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 4
Length Type Standard
Overall Len 2.2500 57.15MM
Tool Material Cobalt
Machine Side Connection Type Weldon
Cutter Style Cobalt Finisher
Single/Double End Double End
Length Of Cut 0.5000 12.70MM
Helix Angle 30°
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
