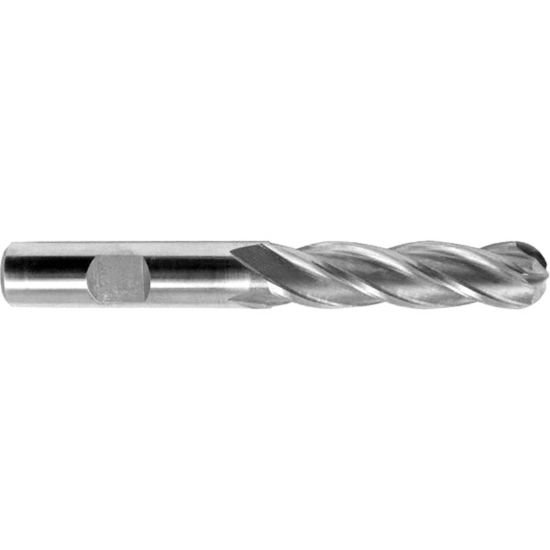

Picture of Melin 10400 Dia 13/16 Sh 0.50 Loc 1.50 Oal3.50 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Ball Noseball

Melin 10400 Dia 13/16 Sh 0.50 Loc 1.50 Oal3.50 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Ball Noseball

Part Number: MEL10400

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: 1002930
Vendor: Sussex Tool and Supply
$0.00

Melin 10400 ball nose end mill with standard flute and helix. Made in USA with weldon connection. Cobalt uncoated tool. Weldon 0.5000 machine side connection.

Key Details

Materials & Finish

  • Tool Material: Cobalt

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Weldon
  • Machine Side (Toolpost): WELDON0.5000

Grades & Coatings

  • Alternate Description: MELIN Standard Helix End Mill Cobalt Uncoated Ball Nose Ball Standard Flute Flutes 2 Single End MELIN

Other Details

  • Brand: MELIN
  • Shipping State: OHIO,CALIFORNIA
  • Made In Usa: Yes

Technical Overview

What It Does

Cuts material with standard flute and helix. Performs ball nose end milling. Suitable for standard toolpost connections.

Composition

Melin 10400 Dia 13/16 Sh 0.50 Loc 1.50 Oal3.50 Cobalt Uncoated

Typical Uses

Standard helix end milling. Ball nose cutting. Use in machine with Weldon connection.

Products specifications
Attribute name Attribute value
Shipping State OHIO, CALIFORNIA
Cutter Type Solid End Mill
Made In USA YES
Cutting Edge Definition Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.
Cutting Edge Material Cobalt
Tool Material Cobalt
Machine Side (Toolpost) WELDON0.5000
Machine Side (Toolpost) Connection Type Weldon
Overall Length 3.5000 88.90MM
Shank Or Pilot Diameter 0.5000 12.70MM - 1/2
Family Group Melin
Coolant Thru Non Coolant
Mach Side Connection Size 0.5000 12.70MM - 1/2
Tool Diameter 0.8125 20.64MM - 13/16
Flutes Or Inserts 2
Length Type Standard
Performance Rating General Performance
Length Of Cut 1.5000 38.10MM
End Of Tool Shape Ball Nose
Cutter Style Cobalt Ball Finisher
Single Or Double End Single End
Inch Or Metric Inch
Helix Angle 30°
Center Cutting Center Cutting
