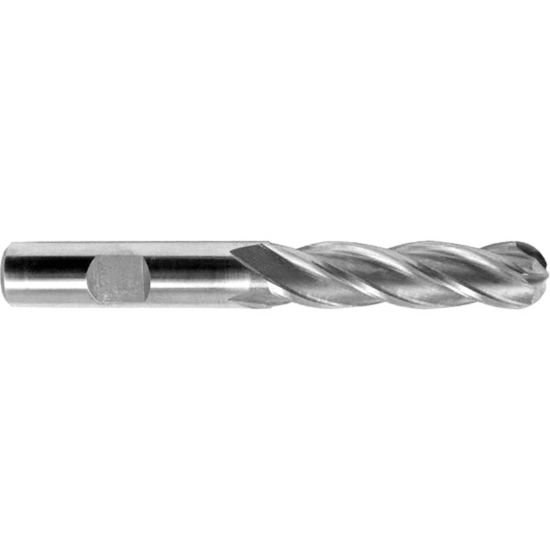

Picture of Melin 10390 Dia 21/32 Sh 0.50 Loc 0.2756 Oal3.3125 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Ball Noseball

Melin 10390 Dia 21/32 Sh 0.50 Loc 0.2756 Oal3.3125 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Ball Noseball

Part Number: MEL10390

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: 1003288
Vendor: Sussex Tool and Supply
$82.16

Melin ball nose end mill with standard flute and helix. Made in USA with cobalt uncoated tool. Weldon connection on machine side. Toolpost connection type: Weldon0.5000.

Key Details

Materials & Finish

  • Tool Material: Cobalt

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Weldon
  • Machine Side (Toolpost): WELDON0.5000

Grades & Coatings

  • Alternate Description: MELIN Standard Helix End Mill Cobalt Uncoated Ball Nose Ball Standard Flute Flutes 2 Single End MELIN

Other Details

  • Brand: MELIN
  • Shipping State: OHIO,CALIFORNIA
  • Made In Usa: Yes

Technical Overview

What It Does

Cuts material with a ball nose end mill. Performs standard flute and helix operations. Suitable for standard toolpost connections.

Composition

Cobalt, uncoated, standard flute, standard helix, single end ball nose

Typical Uses

Machining with Weldon connection. Used in machine toolpost setups. Standard operations on metal surfaces.

Products specifications
Attribute name Attribute value
Shipping State OHIO, CALIFORNIA
Cutter Type Solid End Mill
Made In USA YES
Cutting Edge Definition Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.
Cutting Edge Material Cobalt
Tool Material Cobalt
Machine Side (Toolpost) WELDON0.5000
Machine Side (Toolpost) Connection Type Weldon
Overall Length 3.3125 84.14MM
Shank Or Pilot Diameter 0.5000 12.70MM - 1/2
Family Group Melin
Coolant Thru Non Coolant
Mach Side Connection Size 0.5000 12.70MM - 1/2
Tool Diameter 0.6563 16.67MM - 21/32
Flutes Or Inserts 2
Length Type Standard
Performance Rating General Performance
Length Of Cut 0.2756 7.00MM
End Of Tool Shape Ball Nose
Cutter Style Cobalt Ball Finisher
Single Or Double End Single End
Inch Or Metric Inch
Helix Angle 30°
Center Cutting Center Cutting
