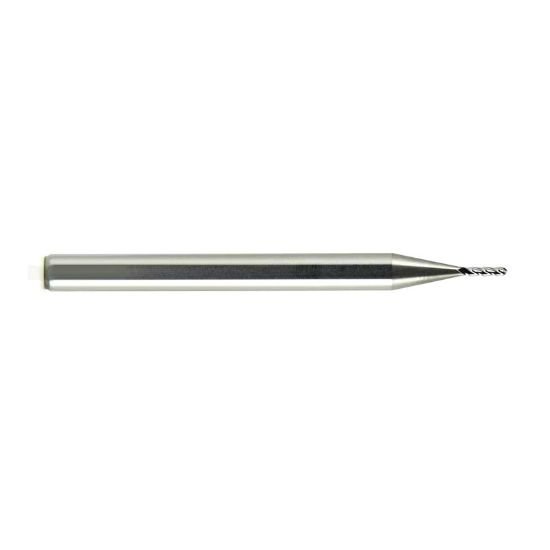

Picture of Melin 10311 Dia 1/8 SH 0.3750 LOC 1.50 OAL3.50 End Mill Taper Flute Carbide Uncoated Single End Ball NoseBall

Melin 10311 Dia 1/8 SH 0.3750 LOC 1.50 OAL3.50 End Mill Taper Flute Carbide Uncoated Single End Ball NoseBall

Part Number: MEL10311 0.125 x 0.375 x 1.500 x 3.500
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1133262
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

MELIN End Mill Carbide Uncoated Ball Nose Ball Taper Flute Flutes 3 Single End MELIN Carbide
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio/California
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Ball Nose
Cutter Style Ball Taper Flute Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Taper/Straight Flute Taper Flute
Dimensions & Sizing
Overall Length 3.5000 88.90MM
Shank/Pilot Dia 0.3750 9.52MM - 3/8
Flutes/Inserts 3
Tool Dia 0.1250 3.18MM - 1/8
Length Of Cut 1.5000 38.10MM
Geometry & Angles
Helix Angle 30
Taper Angle 5.0°
Performance & Capacity
Cut Rating Stainless Steel, <40HRC Steel, Ductile Iron, Gray Iron, High Temp
Performance Rating General Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
