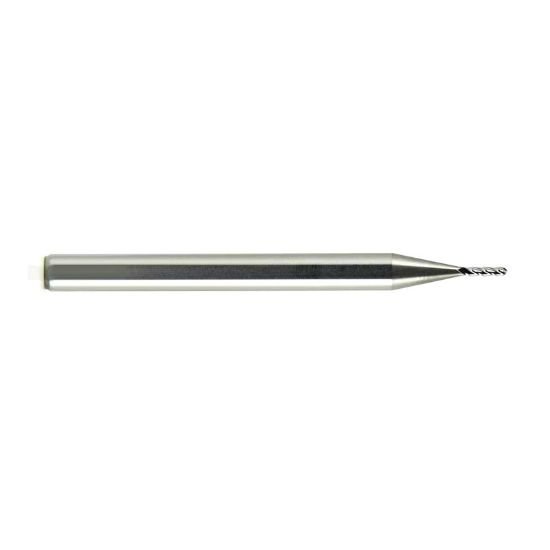

Picture of Melin 10299 Dia 3/16 SH 0.3750 LOC 1.7500 OAL3.50 End Mill Taper Flute Carbide Uncoated Single End Ball NoseBall

Melin 10299 Dia 3/16 SH 0.3750 LOC 1.7500 OAL3.50 End Mill Taper Flute Carbide Uncoated Single End Ball NoseBall

Part Number: MEL10299 0.188 x 0.375 x 1.750 x 3.500

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: 1256917
Vendor: Sussex Tool and Supply
$0.00
MELIN End Mill Carbide Uncoated Ball Nose Ball Taper Flute Flutes 3 Single End MELIN Carbide
Products specifications
Attribute name Attribute value
Shipping State Ohio/California
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, <40HRC Steel, Ductile Iron, Gray Iron, High Temp
Mach Side Connection Size 0.3750 9.53MM
Overall Length 3.5000 88.90MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3750 9.52MM - 3/8
Flutes/Inserts 3
Tool Dia 0.1875 4.76MM - 3/16
Length Type STANDARD
Performance Rating General Performance
Length Of Cut 1.7500 44.45MM
End Of Tool Shape Ball Nose
Cutter Style Ball Taper Flute Finisher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 30
Center Cutting Center Cutting
Taper/Straight Flute Taper Flute
Taper Angle 2.0°
