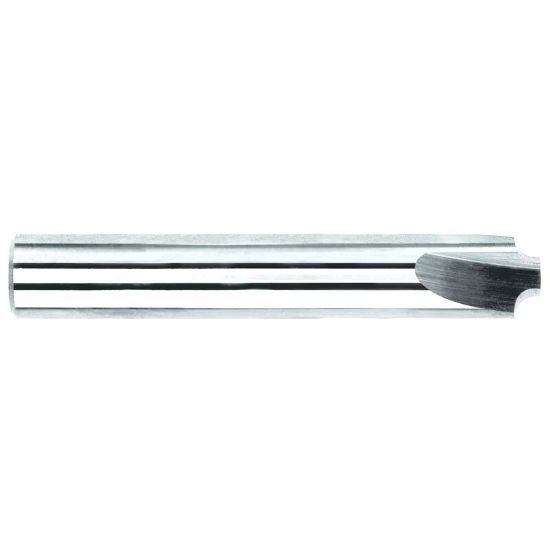

Picture of Melin 10232 Dia 1/8 Sh 0.1250 Loc 0.2500 Oal1.50 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius0.0100 0.25mm

Melin 10232 Dia 1/8 Sh 0.1250 Loc 0.2500 Oal1.50 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius0.0100 0.25mm

Part Number: MEL10232

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: 1002625
Vendor: Sussex Tool and Supply
$0.00

Melin 10232 high helix carbide end mill with uncoated standard flute and 0.0100 corner radius. Cylindrical 0.1250 toolpost connection. Made in USA. Standard flute flutes 5 single end.

Key Details

Materials & Finish

  • Tool Material: Carbide

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Cylindrical
  • Machine Side (Toolpost): CYLINDRICAL0.1250

Grades & Coatings

  • Alternate Description: MELIN High Helix End Mill Carbide Uncoated Corner Radius 0.0100 0.25MM Standard Flute Flutes 5 Single End MELIN

Other Details

  • Brand: MELIN
  • Shipping State: OHIO,CALIFORNIA
  • Made In Usa: Yes

Technical Overview

What It Does

Cuts material with high helix design. Standard flute end mill for precision machining. Removes material efficiently with corner radius 0.0100.

Composition

Carbide uncoated tool material. Cylindrical connection 0.1250. Made in USA.

Typical Uses

Used in machine toolpost with cylindrical mount. Operates in standard flute cutting tasks. Suitable for end milling operations with 0.25mm corner radius.

Products specifications
Attribute name Attribute value
Shipping State OHIO, CALIFORNIA
Cutter Type Solid End Mill
Made In USA YES
Cutting Edge Definition Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Cutting Edge Material Carbide
Tool Material Carbide
Machine Side (Toolpost) CYLINDRICAL0.1250
Machine Side (Toolpost) Connection Type Cylindrical
Overall Length 1.5000 38.10MM- 1-1/2
Shank Or Pilot Diameter 0.1250 3.17MM - 1/8
Family Group Melin
Coolant Thru Non Coolant
Mach Side Connection Size 0.1250 3.18MM - 1/8
Tool Diameter 0.1250 3.18MM - 1/8
Flutes Or Inserts 5
Length Type Standard
Performance Rating General Performance
Length Of Cut 0.2500 6.35MM
End Of Tool Shape Corner Radius
Cutter Style Carbide Bull Nose Finisher
Single Or Double End Single End
Corner Radius 0.0100 0.25MM
Inch Or Metric Inch
Helix Angle 45°
Center Cutting Center Cutting
