  • MELIN 10052 DIA 5/16 SH 0.3750 LOC 0.5625 OAL2.3125 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp

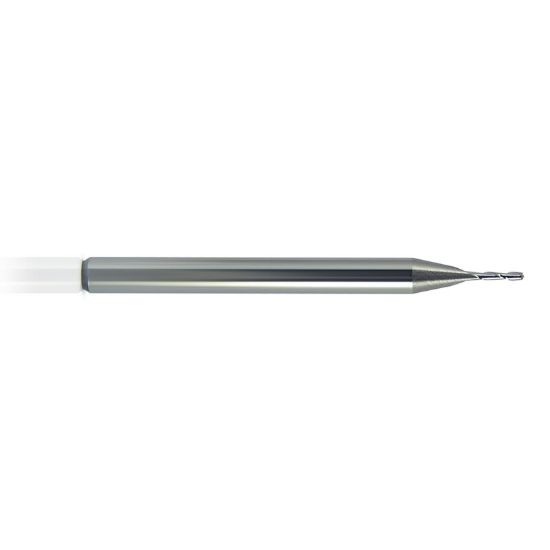

Picture of MELIN 10052 DIA 5/16 SH 0.3750 LOC 0.5625 OAL2.3125 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp

MELIN 10052 DIA 5/16 SH 0.3750 LOC 0.5625 OAL2.3125 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MEL10052
Delivery date: 3-5 days
$20.11
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Additional Key Information 4 Standard Helix
Package Size 1
Additional Key Information 1 End Mill
Additional Key Information 3 Standard Flute
Application Slot Milling, Counterboring, Face Milling, Shoulder Milling
Shipping State Ohio/California
Sold by Pieces 1
Additional Key Information 2 Sharp
Material # Material#3, Material#17, Material#15, Material#10, Material#8
Performance Rating General Performance
Uncategorized
Made In USA Yes
Dimensional Specifications
Flutes/Inserts 2
Dimension Description 0.313 x 0.375 x 0.563 x 2.313
Machine Side WELDON0.3750
Machine Side Connection Type Weldon
Cutter Style Cobalt Finisher
Helix Angle 30°
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Cutter Dia 0.3125 7.94MM - 5/16
End Of Tool Shape Square
Machine Side Connection Size 0.3750 9.53MM
Length Type Standard
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Overall Len 2.3125 58.74MM
Length Of Cut 0.5625 14.29MM
Inch/Metric Inch
Tool Material Cobalt
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
