  • MELIN 10036 DIA 3/16 SH 0.3750 LOC 0.4375 OAL2.3125 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp

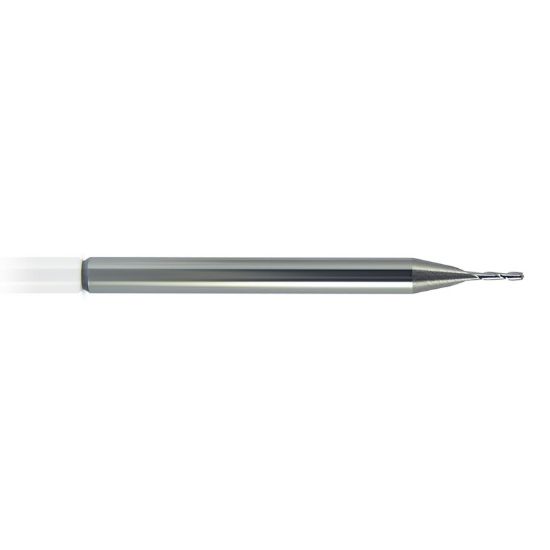

Picture of MELIN 10036 DIA 3/16 SH 0.3750 LOC 0.4375 OAL2.3125 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp

MELIN 10036 DIA 3/16 SH 0.3750 LOC 0.4375 OAL2.3125 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MEL10036
Delivery date: 3-5 days
$19.90
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Shoulder Milling, Counterboring, Slot Milling
Package Size 1
Sold by Pieces 1
Additional Key Information 1 End Mill
Additional Key Information 2 Sharp
Material # Material#17, Material#15, Material#10, Material#3, Material#8
Additional Key Information 4 Standard Helix
Performance Rating General Performance
Additional Key Information 3 Standard Flute
Shipping State Ohio/California
Uncategorized
Made In USA Yes
Dimensional Specifications
Tool Material Cobalt
Single/Double End Single End
Machine Side WELDON0.3750
Helix Angle 30°
Dimension Description 0.188 x 0.375 x 0.438 x 2.313
Machine Side Connection Size 0.3750 9.53MM
Flutes/Inserts 2
Length Type Standard
Machine Side Connection Type Weldon
Cutter Style Cobalt Finisher
Inch/Metric Inch
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Cutter Dia 0.1875 4.76MM - 3/16
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Overall Len 2.3125 58.74MM
Length Of Cut 0.4375 11.11MM
End Of Tool Shape Square
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
