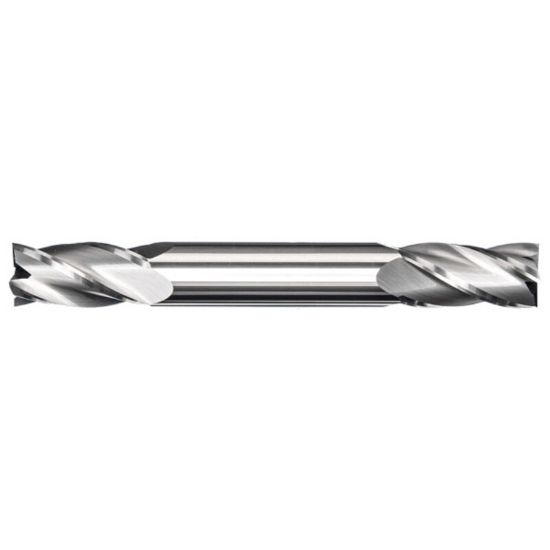

MASTERCUT DIA 1/16 SH 0.1250 LOC 0.1875 OAL2.00 End Mill Standard Flute Standard Helix Carbide Uncoated Double End Square Sharp

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MASTERCUT
SKU: MAS201-306
Delivery date: 3-5 days
$24.52
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#15, Material#17, Material#20, Material#3, Material#8
Sold by Pieces 1
Shipping State Florida
Package Size 1
Additional Key Information 4 Standard Helix
Additional Key Information 1 End Mill
Additional Key Information 2 Sharp
Performance Rating General Performance
Additional Key Information 3 Standard Flute
Application Counterboring, Face Milling, Shoulder Milling, Slot Milling
Uncategorized
Made In USA Yes
Dimensional Specifications
Dimension Description 0.063 x 0.125 x 0.188 x 2.000
Machine Side Connection Type Cylindrical
Single/Double End Double End
Length Of Cut 0.1875 4.76MM
Cutter Dia 0.0625 1.59MM - 1/16
Machine Side Connection Size 0.1250 3.18MM
Overall Len 2.0000 50.80MM
Flutes/Inserts 4
Length Type Standard
Machine Side CYLINDRICAL0.1250
Helix Angle 30°
Cut Rating <40HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Carbide
End Of Tool Shape Square
Cutter Style Carbide Finisher
Inch/Metric Inch
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
