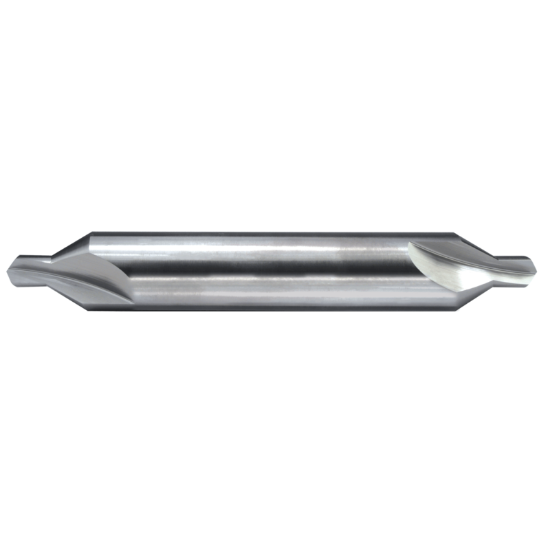

M.A. FORD 40504680 CenterDrill Solid Carbide 60° 0.046 Dia 0.125 Shank 5.000 OAL 2 Flute Flute Length Carbide

ISO: 40504680

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF40509
Delivery date: 3-5 days
$44.68
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Additional Key Information 1 Center Drill
Package Size 1
Application Center Drilling, Drilling
Material # Material#16, Material#4, Material#15, Material#8
Shipping State Iowa
Sold by Pieces 1
Additional Key Information 2 Carbide
Uncategorized
Made In USA Yes
Dimensional Specifications
Machine Side CYLINDRICAL0.1250
Drill Length Type Stub
Included Angle 60°
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Tool Material Carbide
Machine Side Connection Type Cylindrical
Overall Len 5.0000 127.00MM
Cut Dia Min 0.0469 1.19MM - 3/64
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutter Dia 0.0469 1.19MM - 3/64
Machine Side Connection Size 0.1250 3.18MM
Flutes/Inserts 2
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
