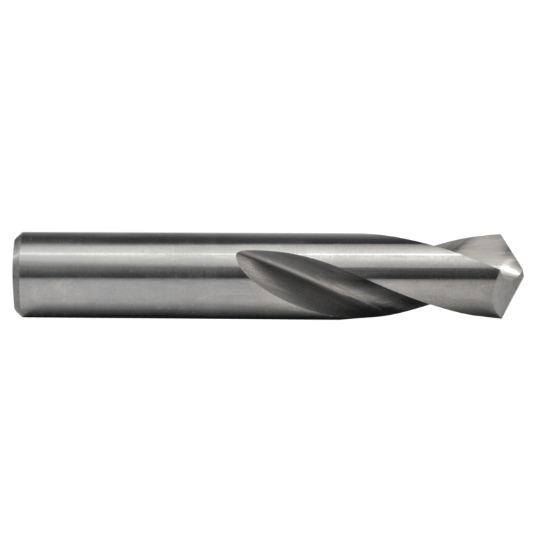

M.A. FORD 40325000 Spot Drill Solid Carbide 120° 0.250 Dia 0.250 Shank 2.000 OAL 2 Flute 1.000 Flute Length Carbide

ISO: 40325000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF40313
Delivery date: 3-5 days
$42.99
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#8, Material#15, Material#16, Material#4
Additional Key Information 2 Carbide
Additional Key Information 1 Spot Drill
Sold by Pieces 1
Application Spot Drilling
Shipping State Iowa
Package Size 1
Uncategorized
Made In USA Yes
Dimensional Specifications
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Overall Len 2.0000 50.80MM
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side CYLINDRICAL0.2500
Machine Side Connection Size 0.2500 6.35MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Included Angle 120°
Cut Dia Min 0.2500 6.35MM - 1/4 - E
Flutes/Inserts 2
Cutter Dia 0.2500 6.35MM - 1/4 - E
Flute Length 1.0000 25.40MM
Drill Length Type Stub
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
