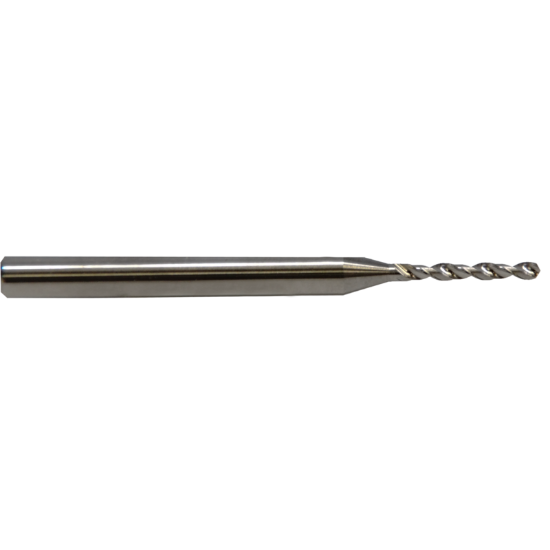

M.A. FORD 30202361C Circuit Board Solid Carbide 130° 0.023 Dia 0.125 Shank 1.496 OAL 2 Flute 0.250 Flute Length Carbide

ISO: 30202361C

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF76078
Delivery date: 3-5 days
$7.95
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Sold by Pieces 1
Application Circuit Board Drilling, Drilling
Additional Key Information 2 Carbide
Material # Material#8, Material#16, Material#4, Material#15
Additional Key Information 1 Circuit Board
Package Size 1
Shipping State Iowa
Uncategorized
Made In USA Yes
Dimensional Specifications
Machine Side CYLINDRICAL0.1250
Cut Dia Min 0.0236 0.60MM
Flute Length 0.2500 6.35MM
Drill Length Type Stub
Cutter Dia 0.0236 0.60MM
Flutes/Inserts 2
Machine Side Connection Size 0.1250 3.18MM
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Overall Len 1.4960 38.00MM
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Carbide
Machine Side Connection Type Cylindrical
Included Angle 130°
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
