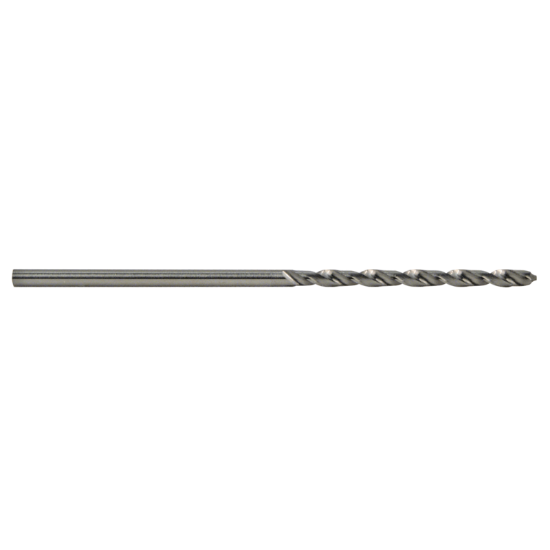

M.A. FORD 30007080 Carbide Drill Solid Carbide 118° 0.070 Dia 0.070 Shank 1.496 OAL 2 Flute 0.630 Flute Length Carbide

ISO: 30007080

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF30245
Delivery date: 3-5 days
$11.55
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#15, Material#8, Material#16, Material#4
Sold by Pieces 1
Additional Key Information 1 Carbide Drill
Additional Key Information 2 Solid
Package Size 1
Application Dilling, Drilling Flood Coolant
Shipping State Iowa
Uncategorized
Made In USA Yes
Dimensional Specifications
Machine Side CYLINDRICAL0.0709
Tool Material Carbide
Machine Side Connection Type Cylindrical
Flute Length 0.6300 16.00MM
Dia Deep 5.0XD
Shank/Pilot Dia 0.0709 1.80MM
Overall Len 1.4961 38.00MM
Cut Dia Min 0.0709 1.80MM
Machine Side Connection Size 0.0709 1.80MM
Flutes/Inserts 2
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutter Dia 0.0709 1.80MM
Included Angle 118°
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
