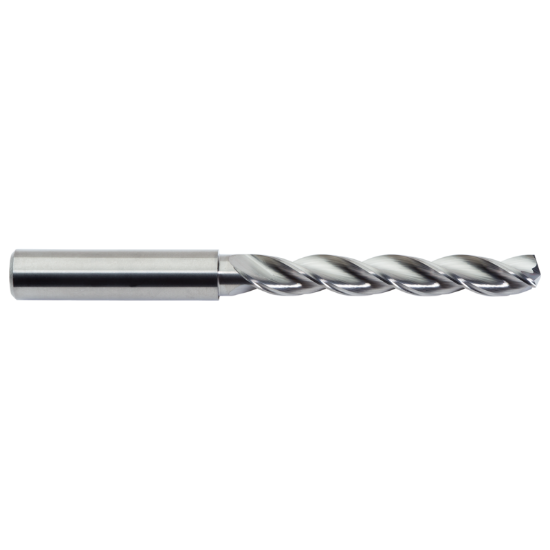

M.A. FORD 22912600 Carbide Drill Solid Carbide 144° 0.126 Dia 0.236 Shank 2.598 OAL 3 Flute 1.102 Flute Length Carbide

ISO: 22912600

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF22945
Delivery date: 3-5 days
$50.41
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#20, Material#22, Material#21, Material23
Application Drilling Flood Coolant, Dilling
Sold by Pieces 1
Additional Key Information 1 Carbide Drill
Additional Key Information 2 Solid
Shipping State Iowa
Package Size 1
Uncategorized
Made In USA Yes
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.2362 6.00MM
Cutter Dia 0.1260 3.20MM
Machine Side Connection Size 0.2362 6.00MM
Flute Length 1.1020 27.99MM
Cut Rating Aluminum, Brass, Plastic, Copper
Cut Dia Min 0.1260 3.20MM
Flutes/Inserts 3
Dia Deep 5.0XD
Machine Side CYLINDRICAL0.2362
Overall Len 2.5984 66.00MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
