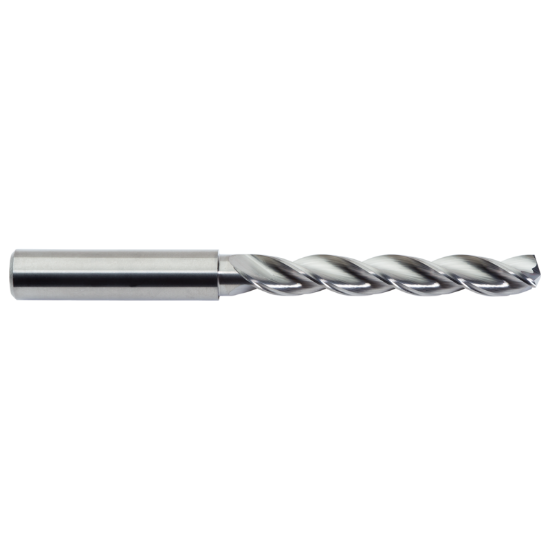

M.A. FORD 22910650 Carbide Drill Solid Carbide 144° 0.106 Dia 0.106 Shank 2.250 OAL 3 Flute 1.250 Flute Length Carbide

ISO: 22910650

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF22943
Delivery date: 3-5 days
$45.01
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material23, Material#21, Material#20, Material#22
Sold by Pieces 1
Additional Key Information 1 Carbide Drill
Additional Key Information 2 Solid
Application Dilling, Drilling Flood Coolant
Shipping State Iowa
Package Size 1
Uncategorized
Made In USA Yes
Dimensional Specifications
Cut Rating Aluminum, Brass, Plastic, Copper
Flutes/Inserts 3
Dia Deep 5.0XD
Flute Length 1.2500 31.75MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.1065 2.71MM
Machine Side CYLINDRICAL0.1065
Cutter Dia 0.1065 2.71MM - #36
Shank/Pilot Dia 0.1065 2.71MM - #36
Overall Len 2.2500 57.15MM
Cut Dia Min 0.1065 2.71MM - #36
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
