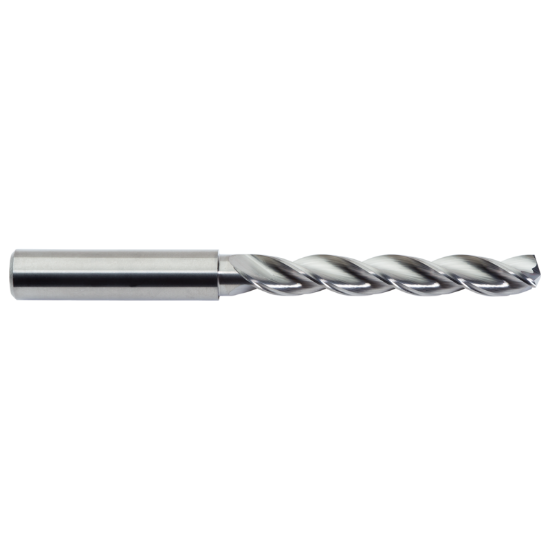

M.A. FORD 22909380 Carbide Drill Solid Carbide 144° 0.093 Dia 0.093 Shank 2.000 OAL 3 Flute 1.000 Flute Length Carbide

ISO: 22909380

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF22902
Delivery date: 3-5 days
$40.95
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material23, Material#21, Material#20, Material#22
Sold by Pieces 1
Additional Key Information 1 Carbide Drill
Additional Key Information 2 Solid
Package Size 1
Application Drilling Flood Coolant, Dilling
Shipping State Iowa
Uncategorized
Made In USA Yes
Dimensional Specifications
Cut Rating Aluminum, Brass, Plastic, Copper
Machine Side Connection Size 0.0938 2.38MM
Flutes/Inserts 3
Dia Deep 5.0XD
Cut Dia Min 0.0938 2.38MM - 3/32
Machine Side CYLINDRICAL0.0938
Cutter Dia 0.0938 2.38MM - 3/32
Overall Len 2.0000 50.80MM
Shank/Pilot Dia 0.0938 2.38MM - 3/32
Flute Length 1.0000 25.40MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
