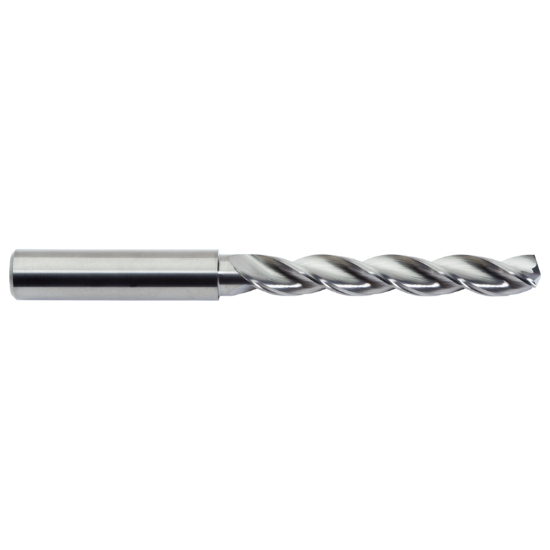

M.A. FORD 22909060 Carbide Drill Solid Carbide 144° 0.090 Dia 0.090 Shank 1.692 OAL 3 Flute 0.807 Flute Length Carbide

ISO: 22909060

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF23058
Delivery date: 3-5 days
$40.95
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Additional Key Information 2 Solid
Application Drilling Flood Coolant, Dilling
Material # Material23, Material#20, Material#21, Material#22
Shipping State Iowa
Package Size 1
Sold by Pieces 1
Additional Key Information 1 Carbide Drill
Uncategorized
Made In USA Yes
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Type Cylindrical
Overall Len 1.6929 43.00MM
Machine Side CYLINDRICAL0.0906
Cutter Dia 0.0906 2.30MM
Cut Dia Min 0.0906 2.30MM
Shank/Pilot Dia 0.0906 2.30MM
Flute Length 0.8070 20.50MM
Machine Side Connection Size 0.0906 2.30MM
Cut Rating Aluminum, Brass, Plastic, Copper
Flutes/Inserts 3
Dia Deep 5.0XD
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
