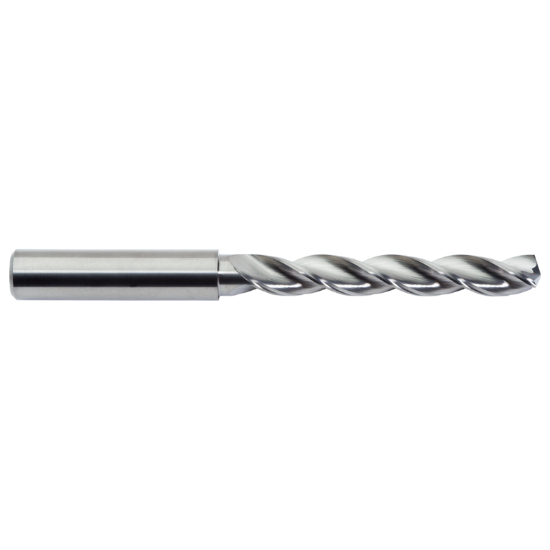

M.A. FORD 22907000 Carbide Drill Solid Carbide 144° 0.070 Dia 0.070 Shank 1.750 OAL 3 Flute 0.875 Flute Length Carbide

ISO: 22907000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF23055
Delivery date: 3-5 days
$40.95
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material23, Material#20, Material#21, Material#22
Application Drilling Flood Coolant, Dilling
Sold by Pieces 1
Additional Key Information 1 Carbide Drill
Additional Key Information 2 Solid
Package Size 1
Shipping State Iowa
Uncategorized
Made In USA Yes
Dimensional Specifications
Cut Rating Aluminum, Brass, Plastic, Copper
Flutes/Inserts 3
Dia Deep 5.0XD
Overall Len 1.7500 44.45MM
Shank/Pilot Dia 0.0700 1.78MM - #50
Cut Dia Min 0.0700 1.78MM - #50
Machine Side Connection Size 0.0700 1.78MM
Cutter Dia 0.0700 1.78MM - #50
Machine Side CYLINDRICAL0.0700
Flute Length 0.8750 22.23MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
