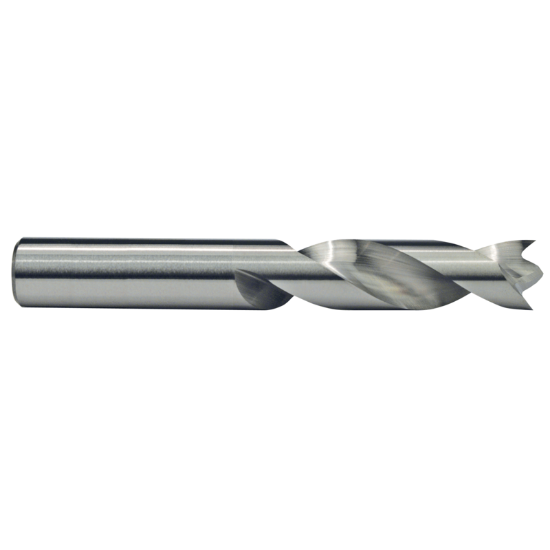

M.A. FORD 20719290 Carbide Drill Solid Carbide Spur 0.192 Dia 0.192 Shank 2.244 OAL 2 Flute 1.004 Flute Length Carbide

ISO: 20719290

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF27190
Delivery date: 3-5 days
$51.01
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Material # Material#15, Material#8, Material#16, Material#4
Application Drilling Flood Coolant, Dilling
Shipping State Iowa
Sold by Pieces 1
Additional Key Information 1 Carbide Drill
Additional Key Information 2 Solid
Uncategorized
Made In USA Yes
Dimensional Specifications
Included Angle Spur
Flutes/Inserts 2
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Dia 0.1929 4.90MM
Machine Side Connection Size 0.1929 4.90MM
Cut Dia Min 0.1929 4.90MM
Flute Length 1.0040 25.50MM
Machine Side CYLINDRICAL0.1929
Overall Len 2.2441 57.00MM
Shank/Pilot Dia 0.1929 4.90MM
Drill Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
