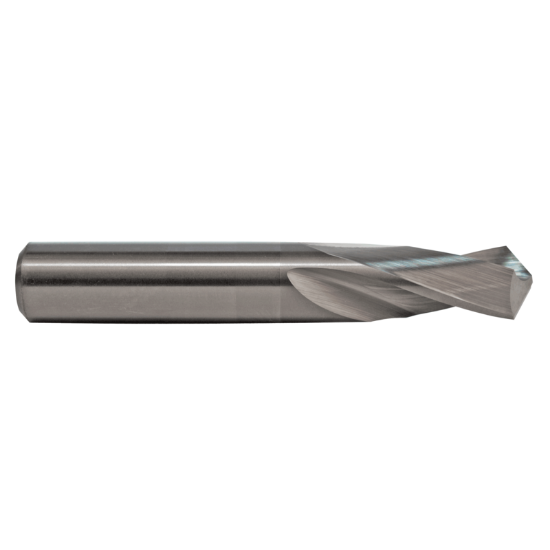

M.A. FORD 20627200 Carbide Drill Solid Carbide 118° 0.272 Dia 0.272 Shank 2.500 OAL 2 Flute 1.000 Flute Length Carbide

ISO: 20627200

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF26439
Delivery date: 3-5 days
$50.85
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#15, Material#16, Material#4, Material#8
Additional Key Information 2 Solid
Application Dilling, Drilling Flood Coolant
Shipping State Iowa
Package Size 1
Sold by Pieces 1
Additional Key Information 1 Carbide Drill
Uncategorized
Made In USA Yes
Dimensional Specifications
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Carbide
Machine Side Connection Type Cylindrical
Included Angle 118°
Flute Length 1.0000 25.40MM
Drill Length Type Stub
Machine Side Connection Size 0.2720 6.91MM
Cutter Dia 0.2720 6.91MM - I
Shank/Pilot Dia 0.2720 6.91MM - I
Overall Len 2.5000 63.50MM
Cut Dia Min 0.2720 6.91MM - I
Flutes/Inserts 2
Machine Side CYLINDRICAL0.2720
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
