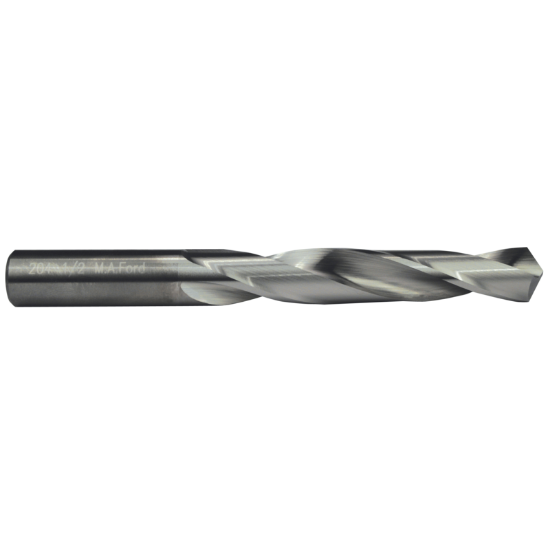

M.A. FORD 20421300 Carbide Drill Solid Carbide 118° 0.213 Dia 0.213 Shank 3.000 OAL 2 Flute 1.750 Flute Length Carbide

ISO: 20421300

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF24460
Delivery date: 3-5 days
$48.69
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#16, Material#4, Material#8, Material#15
Application Dilling, Drilling Flood Coolant
Shipping State Iowa
Package Size 1
Sold by Pieces 1
Additional Key Information 1 Carbide Drill
Additional Key Information 2 Solid
Uncategorized
Made In USA Yes
Dimensional Specifications
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Carbide
Included Angle 118°
Cut Dia Min 0.2130 5.41MM - #3
Drill Length Type Jobber
Cutter Dia 0.2130 5.41MM - #3
Overall Len 3.0000 76.20MM
Flute Length 1.7500 44.45MM
Machine Side CYLINDRICAL0.2130
Machine Side Connection Size 0.2130 5.41MM
Shank/Pilot Dia 0.2130 5.41MM - #3
Flutes/Inserts 2
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
