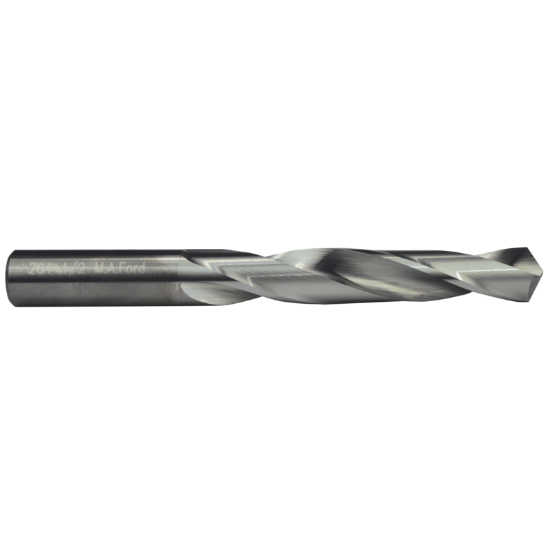

M.A. FORD 20420900 Carbide Drill Solid Carbide 118° 0.209 Dia 0.209 Shank 3.000 OAL 2 Flute 1.750 Flute Length Carbide

ISO: 20420900

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF24454
Delivery date: 3-5 days
$47.36
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Dilling, Drilling Flood Coolant
Shipping State Iowa
Material # Material#8, Material#15, Material#16, Material#4
Package Size 1
Sold by Pieces 1
Additional Key Information 1 Carbide Drill
Additional Key Information 2 Solid
Uncategorized
Made In USA Yes
Dimensional Specifications
Cut Dia Min 0.2090 5.30MM - #4
Machine Side Connection Size 0.2090 5.31MM
Flutes/Inserts 2
Machine Side CYLINDRICAL0.2090
Flute Length 1.7500 44.45MM
Drill Length Type Jobber
Shank/Pilot Dia 0.2090 5.31MM - #4
Overall Len 3.0000 76.20MM
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Carbide
Machine Side Connection Type Cylindrical
Included Angle 118°
Cutter Dia 0.2090 5.31MM - #4
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
