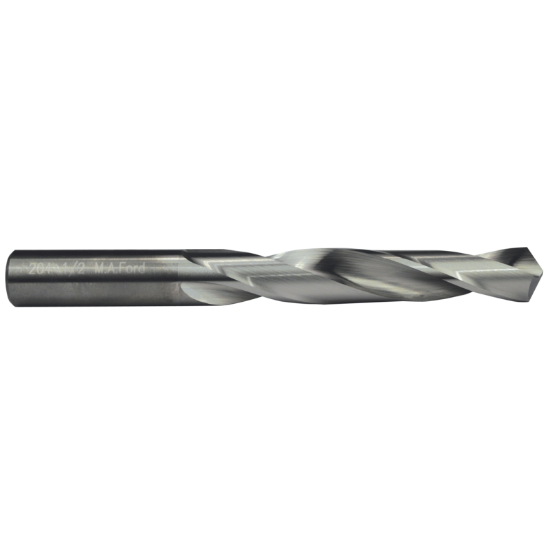

M.A. FORD 20420310 Carbide Drill Solid Carbide 118° 0.203 Dia 0.203 Shank 3.000 OAL 2 Flute 1.750 Flute Length Carbide

ISO: 20420310

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF24439
Delivery date: 3-5 days
$40.17
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#16, Material#4, Material#15, Material#8
Application Drilling Flood Coolant, Dilling
Additional Key Information 1 Carbide Drill
Additional Key Information 2 Solid
Sold by Pieces 1
Package Size 1
Shipping State Iowa
Uncategorized
Made In USA Yes
Dimensional Specifications
Shank/Pilot Dia 0.2031 5.16MM - 13/64
Included Angle 118°
Machine Side CYLINDRICAL0.2031
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Carbide
Machine Side Connection Type Cylindrical
Overall Len 3.0000 76.20MM
Cut Dia Min 0.2031 5.16MM - 13/64
Machine Side Connection Size 0.2031 5.16MM
Flute Length 1.7500 44.45MM
Drill Length Type Jobber
Cutter Dia 0.2031 5.16MM - 13/64
Flutes/Inserts 2
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
