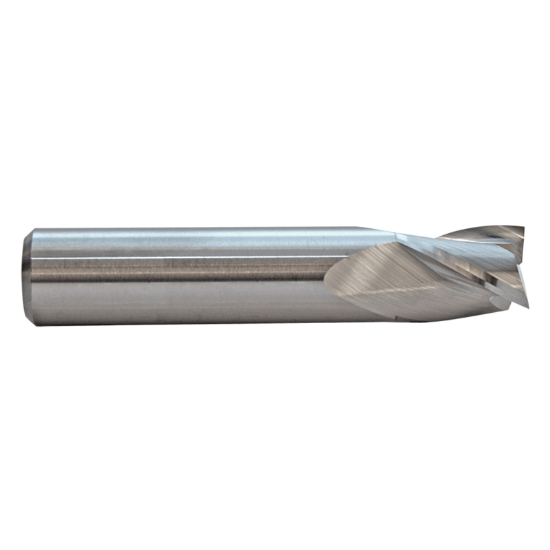

M.A. FORD 16906250R.020 DIA 1/16 SH 0.1250 LOC 0.1250 OAL1.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.0200 0.51MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF16914
Delivery date: 3-5 days
$51.03
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#15, Material#18, Material#2, Material#8
Application Copy Milling, Side Milling, Profile Milling, Slot Milling, Face Milling
Shipping State Iowa
Sold by Pieces 1
Additional Key Information 1 End Mill
Additional Key Information 3 Standard Flute
Package Size 1
Additional Key Information 2 Corner Radius
Additional Key Information 4 Standard Helix
Performance Rating General Performance
Uncategorized
Made In USA Yes
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Dimension Description 0.063 x 0.125 x 0.125 x 1.500
Corner Radius 0.0200 0.51MM
Machine Side CYLINDRICAL0.1250
Helix Angle 30°
End Of Tool Shape Corner Radius
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Single/Double End Single End
Machine Side Connection Size 0.1250 3.18MM
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Cutter Dia 0.0625 1.59MM - 1/16
Length Type Standard
Overall Len 1.5000 38.10MM
Flutes/Inserts 3
Length Of Cut 0.1250 3.18MM
Cutter Style Carbide Bull Nose Finisher
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
