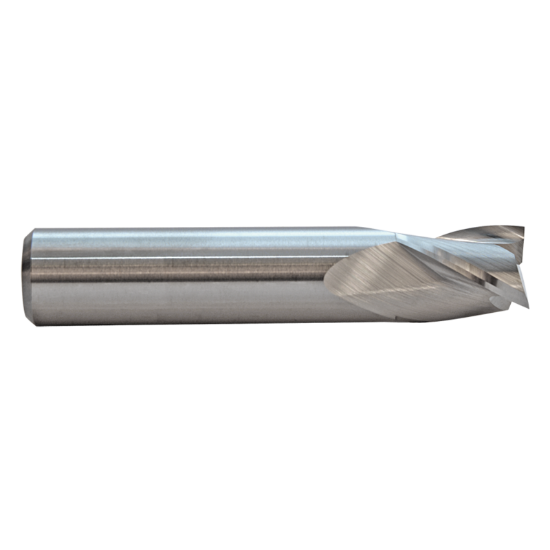

M.A. FORD 16906250R.010 DIA 1/16 SH 0.1250 LOC 0.1250 OAL1.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.0100 0.25MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF16910
Delivery date: 3-5 days
$51.03
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Additional Key Information 4 Standard Helix
Additional Key Information 1 End Mill
Additional Key Information 3 Standard Flute
Application Side Milling, Face Milling, Profile Milling, Slot Milling, Copy Milling
Material # Material#18, Material#2, Material#8, Material#15
Performance Rating General Performance
Shipping State Iowa
Sold by Pieces 1
Additional Key Information 2 Corner Radius
Package Size 1
Uncategorized
Made In USA Yes
Dimensional Specifications
Cutter Dia 0.0625 1.59MM - 1/16
Machine Side Connection Size 0.1250 3.18MM
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Length Type Standard
Overall Len 1.5000 38.10MM
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Corner Radius 0.0100 0.25MM
Machine Side CYLINDRICAL0.1250
End Of Tool Shape Corner Radius
Single/Double End Single End
Tool Material Carbide
Machine Side Connection Type Cylindrical
Length Of Cut 0.1250 3.18MM
Inch/Metric Inch
Dimension Description 0.063 x 0.125 x 0.125 x 1.500
Helix Angle 30°
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
