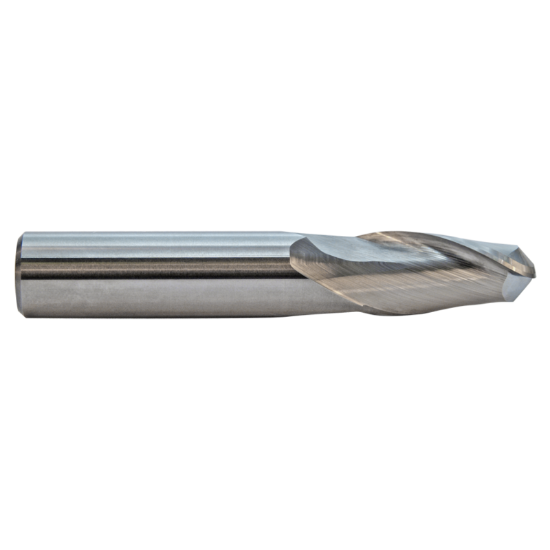

M.A. FORD 15019680T DIA 5MM SH 0.1969 LOC 0.7874 OAL2.0079 End Mill Standard Flute Standard Helix Carbide TiN Single End Ball NoseBall TuffCut® GP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF55080
Delivery date: 3-5 days
$44.84
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#17, Material#8, Material#3, Material#15
Additional Key Information 4 Standard Helix
Application Ball Slot Milling, Profile Milling, Ball Milling, Copy Milling, Side Milling
Coating TiN
Shipping State Iowa
Performance Rating General Performance
Additional Key Information 1 End Mill
Additional Key Information 3 Standard Flute
Sold by Pieces 1
Additional Key Information 2 Ball Nose
Package Size 1
Uncategorized
Made In USA Yes
Dimensional Specifications
Machine Side Connection Size 0.1969 5.00MM
Shank/Pilot Dia 0.1969 5.00MM
Length Type Standard
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Machine Side CYLINDRICAL0.1969
End Of Tool Shape Ball Nose
Cutter Dia 0.1968 5.00MM
Tool Material Carbide
Length Of Cut 0.7874 20.00MM
Overall Len 2.0079 51.00MM
Helix Angle 30°
Dimension Description 0.197 x 0.197 x 0.787 x 2.008
Machine Side Connection Type Cylindrical
Flutes/Inserts 2
Inch/Metric Metric
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
