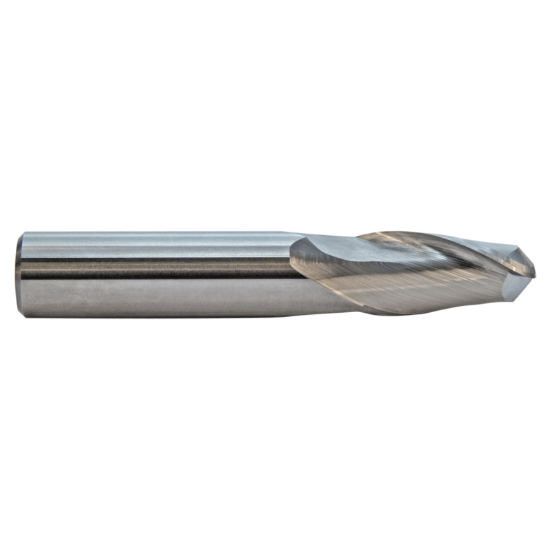

M.A. FORD 15001570 DIA 0.40MM SH 0.1181 LOC 0.0472 OAL1.496 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball NoseBall TuffCut® GP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF15038
Delivery date: 3-5 days
$47.01
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#3, Material#17, Material#8, Material#15
Performance Rating General Performance
Additional Key Information 1 End Mill
Application Side Milling, Ball Milling, Ball Slot Milling, Profile Milling, Copy Milling
Additional Key Information 2 Ball Nose
Additional Key Information 4 Standard Helix
Shipping State Iowa
Additional Key Information 3 Standard Flute
Sold by Pieces 1
Package Size 1
Uncategorized
Made In USA Yes
Dimensional Specifications
Overall Len 1.4961 38.00MM
Helix Angle 30°
Length Type Standard
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Cutter Dia 0.0157 0.40MM
Machine Side CYLINDRICAL0.1181
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.1181 3.00MM
Dimension Description 0.016 x 0.118 x 0.047 x 1.496
Machine Side Connection Size 0.1181 3.00MM
Flutes/Inserts 2
Length Of Cut 0.0472 1.20MM
Inch/Metric Metric
End Of Tool Shape Ball Nose
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
