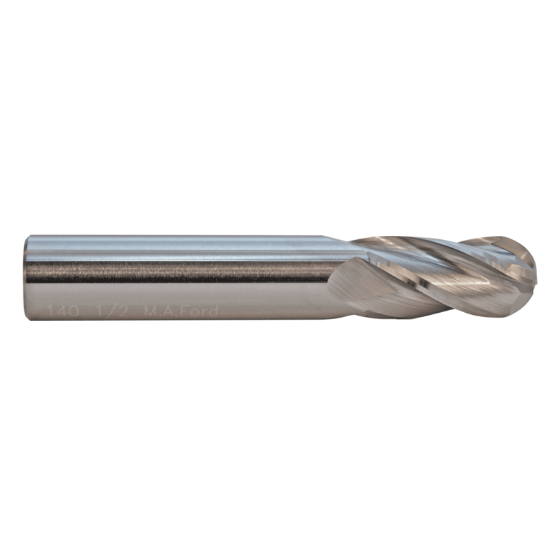

M.A. FORD 14019680T DIA 5MM SH 0.1969 LOC 0.7874 OAL2.0079 End Mill Standard Flute Standard Helix Carbide TiN Single End Ball NoseBall TuffCut® GP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF14080
Delivery date: 3-5 days
$44.84
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#17, Material#3, Material#8, Material#15
Additional Key Information 2 Ball Nose
Additional Key Information 4 Standard Helix
Additional Key Information 3 Standard Flute
Application Ball Slot Milling, Profile Milling, Side Milling, Copy Milling, Ball Milling
Coating TiN
Performance Rating General Performance
Shipping State Iowa
Sold by Pieces 1
Additional Key Information 1 End Mill
Package Size 1
Uncategorized
Made In USA Yes
Dimensional Specifications
Flutes/Inserts 4
Length Type Standard
Inch/Metric Metric
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutter Style Carbide Ball Finisher
Length Of Cut 0.7874 20.00MM
Machine Side CYLINDRICAL0.1969
End Of Tool Shape Ball Nose
Dimension Description 0.197 x 0.197 x 0.787 x 2.008
Overall Len 2.0079 51.00MM
Helix Angle 30°
Single/Double End Single End
Cutter Dia 0.1968 5.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.1969 5.00MM
Shank/Pilot Dia 0.1969 5.00MM
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
