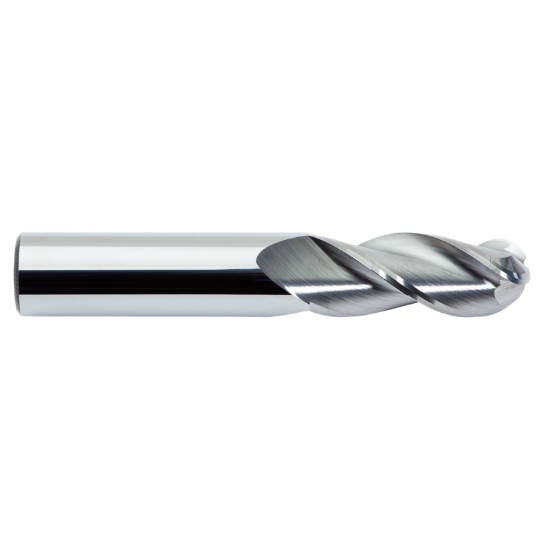

M.A. FORD 138B12501 DIA 1/8 SH 0.1250 LOC 0.50 OAL2.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball NoseBall TuffCut® X-AL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF13302
Delivery date: 3-5 days
$50.41
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#42, Material#25, Material#20
Application Copy Milling, Face Milling, Profile Milling, Side Milling
Performance Rating High Performance
Additional Key Information 1 End Mill
Additional Key Information 3 Standard Flute
Shipping State Iowa
Package Size 1
Additional Key Information 2 Ball Nose
Additional Key Information 4 Standard Helix
Sold by Pieces 1
Uncategorized
Made In USA Yes
Dimensional Specifications
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Flutes/Inserts 3
End Of Tool Shape Ball Nose
Machine Side Connection Size 0.1250 3.18MM
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Overall Len 2.0000 50.80MM
Helix Angle 36°
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Length Type Standard
Dimension Description 0.125 x 0.125 x 0.500 x 2.000
Cutter Dia 0.1250 3.18MM - 1/8
Machine Side CYLINDRICAL0.1250
Length Of Cut 0.5000 12.70MM
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
