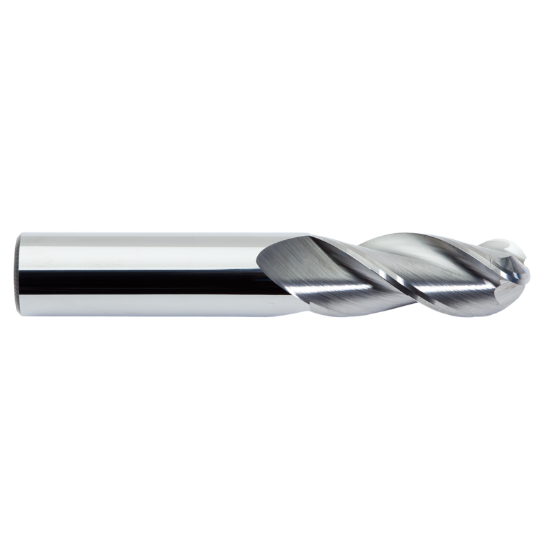

M.A. FORD 138B10001 DIA 1 SH 1.00 LOC 2.2500 OAL5.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball NoseBall TuffCut® X-AL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF13340
Delivery date: 3-5 days
$812.01
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Sold by Pieces 1
Application Copy Milling, Profile Milling, Face Milling, Side Milling
Material # Material#42, Material#25, Material#20
Performance Rating High Performance
Additional Key Information 3 Standard Flute
Shipping State Iowa
Package Size 1
Additional Key Information 2 Ball Nose
Additional Key Information 4 Standard Helix
Additional Key Information 1 End Mill
Uncategorized
Made In USA Yes
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Dimension Description 1.000 x 1.000 x 2.250 x 5.000
Cut Rating Aluminum, Graphite, Plastic
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cutter Style Carbide Ball Finisher
Flutes/Inserts 3
End Of Tool Shape Ball Nose
Helix Angle 36°
Machine Side CYLINDRICAL1.0000
Single/Double End Single End
Cutter Dia 1.0000 25.40MM
Length Type Standard
Overall Len 5.0000 127.00MM
Length Of Cut 2.2500 57.15MM
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
