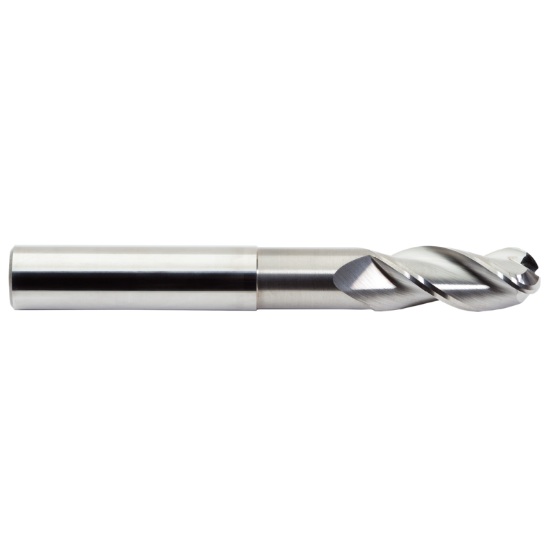

M.A. FORD 138B0787N5 DIA 2MM SH 0.2362 LOC 0.1575 OAL2.9528 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball NoseBall TuffCut® X-AL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF13372
Delivery date: 3-5 days
$50.98
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#20, Material#42, Material#25
Additional Key Information 1 End Mill
Additional Key Information 3 Standard Flute
Application Side Milling, Copy Milling, Face Milling, Profile Milling
Sold by Pieces 1
Additional Key Information 2 Ball Nose
Package Size 1
Performance Rating High Performance
Additional Key Information 4 Standard Helix
Shipping State Iowa
Uncategorized
Made In USA Yes
Dimensional Specifications
Machine Side CYLINDRICAL0.2362
Neck Length 0.4724 12.00MM
Inch/Metric Metric
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 3
Machine Side Connection Size 0.2362 6.00MM
Length Of Cut 0.1575 4.00MM
Length Type Standard / With Neck
Helix Angle 36°
End Of Tool Shape Ball Nose
Dimension Description 0.079 x 0.236 x 0.158 x 2.953
Cutter Dia 0.0787 2.00MM
Overall Len 2.9528 75.00MM
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
