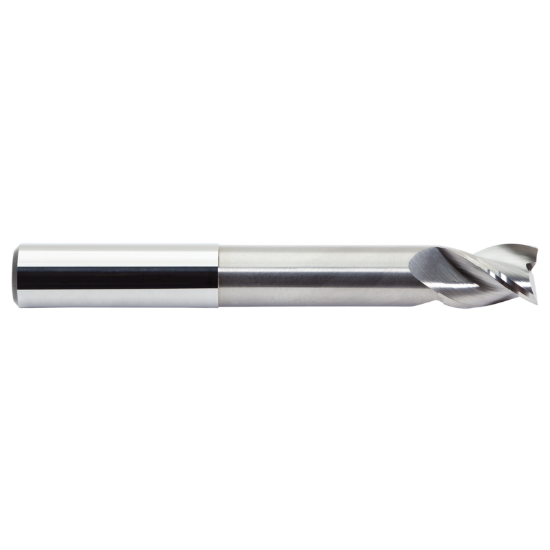

M.A. FORD 13812550NR.015 DIA 1/8 SH 0.1250 LOC 0.1875 OAL2.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.0150 0.38MM TuffCut® X-AL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF11794
Delivery date: 3-5 days
$45.54
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#25, Material#42, Material#20
Application Copy Milling, Side Milling, Face Milling, Profile Milling
Performance Rating High Performance
Additional Key Information 4 Standard Helix
Sold by Pieces 1
Additional Key Information 1 End Mill
Additional Key Information 2 Corner Radius
Package Size 1
Additional Key Information 3 Standard Flute
Shipping State Iowa
Uncategorized
Made In USA Yes
Dimensional Specifications
Dimension Description 0.125 x 0.125 x 0.188 x 2.000
Neck Length 1.0000 25.40MM
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Corner Radius 0.0150 0.38MM
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Inch/Metric Inch
Machine Side Connection Size 0.1250 3.18MM
Overall Len 2.0000 50.80MM
Length Type Standard / With Neck
Machine Side Connection Type Cylindrical
Cutter Dia 0.1250 3.18MM - 1/8
Machine Side CYLINDRICAL0.1250
Length Of Cut 0.1875 4.76MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Helix Angle 36°
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
