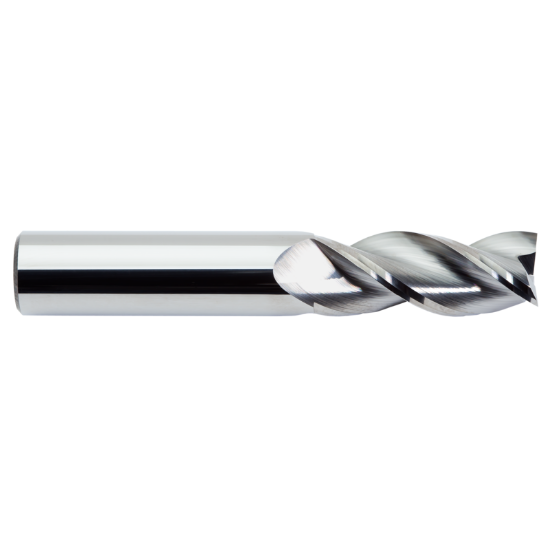

M.A. FORD 13812504R.030 DIA 1/8 SH 0.1250 LOC 0.50 OAL1.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.0300 0.76MM TuffCut® X-AL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF17656
Delivery date: 3-5 days
$43.25
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Profile Milling, Copy Milling, Side Milling
Package Size 1
Material # Material#42, Material#20, Material#25
Performance Rating High Performance
Additional Key Information 1 End Mill
Additional Key Information 3 Standard Flute
Additional Key Information 2 Corner Radius
Additional Key Information 4 Standard Helix
Sold by Pieces 1
Shipping State Iowa
Uncategorized
Made In USA Yes
Dimensional Specifications
Machine Side Connection Size 0.1250 3.18MM
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Helix Angle 36°
Corner Radius 0.0300 0.76MM
Single/Double End Single End
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Overall Len 1.5000 38.10MM
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
End Of Tool Shape Corner Radius
Length Type Standard
Cutter Dia 0.1250 3.18MM - 1/8
Machine Side CYLINDRICAL0.1250
Length Of Cut 0.5000 12.70MM
Dimension Description 0.125 x 0.125 x 0.500 x 1.500
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
