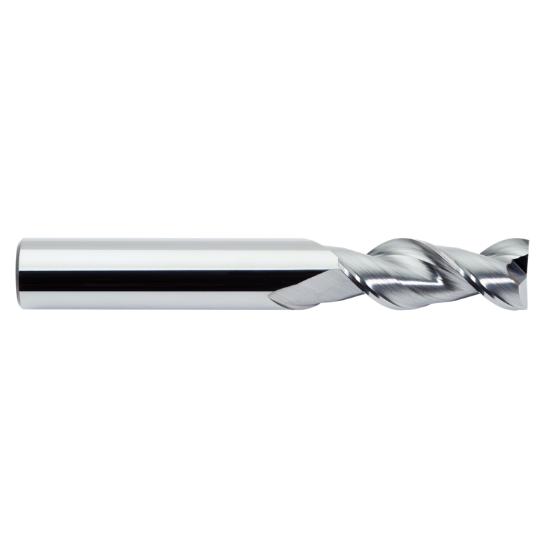

M.A. FORD 13618751R.015 DIA 3/16 SH 0.1875 LOC 0.6250 OAL2.50 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius0.0150 0.38MM TUFFCUT® AL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF77033
Delivery date: 3-5 days
$67.28
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Additional Key Information 2 Corner Radius
Package Size 1
Application Face Milling, Profile Milling, Copy Milling, Side Milling
Material # Material#20, Material#42, Material#25
Additional Key Information 1 End Mill
Additional Key Information 3 Standard Flute
Additional Key Information 4 High Helix
Sold by Pieces 1
Shipping State Iowa
Uncategorized
Made In USA Yes
Dimensional Specifications
Length Type Standard
Cutter Style Carbide Bull Nose Finisher
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 2
Length Of Cut 0.6250 15.88MM
Machine Side CYLINDRICAL0.1875
Overall Len 2.5000 63.50MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Dimension Description 0.188 x 0.188 x 0.625 x 2.500
Corner Radius 0.0150 0.38MM
Cut Rating Aluminum, Graphite, Plastic
Cutter Dia 0.1875 4.76MM - 3/16
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Machine Side Connection Size 0.1875 4.76MM
Helix Angle 45°
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
