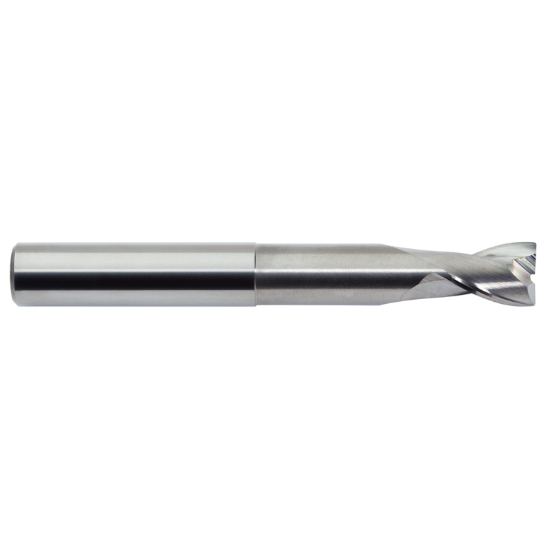

M.A. FORD 13519601N3 DIA 5MM SH 0.2362 LOC 0.2362 OAL2.5197 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.0197 0.50MM TuffCut® AL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF96633
Delivery date: 3-5 days
$50.32
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#42, Material#20, Material#25
Performance Rating High Performance
Shipping State Iowa
Sold by Pieces 1
Application Copy Milling, Side Milling, Face Milling, Profile Milling
Additional Key Information 1 End Mill
Additional Key Information 3 Standard Flute
Additional Key Information 4 Standard Helix
Additional Key Information 2 Corner Radius
Package Size 1
Uncategorized
Made In USA Yes
Dimensional Specifications
Cut Rating Aluminum, Graphite, Plastic
Cutter Dia 0.1968 5.00MM
Length Of Cut 0.2362 6.00MM
Machine Side Connection Size 0.2362 6.00MM
Neck Length 0.6693 17.00MM
Machine Side CYLINDRICAL0.2362
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.2362 6.00MM
Helix Angle 30°
End Of Tool Shape Corner Radius
Overall Len 2.5197 64.00MM
Flutes/Inserts 2
Length Type Standard
Inch/Metric Metric
Single/Double End Single End
Dimension Description 0.197 x 0.236 x 0.236 x 2.520
Corner Radius 0.0197 0.50MM
Cutter Style Carbide Bull Nose Finisher
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
