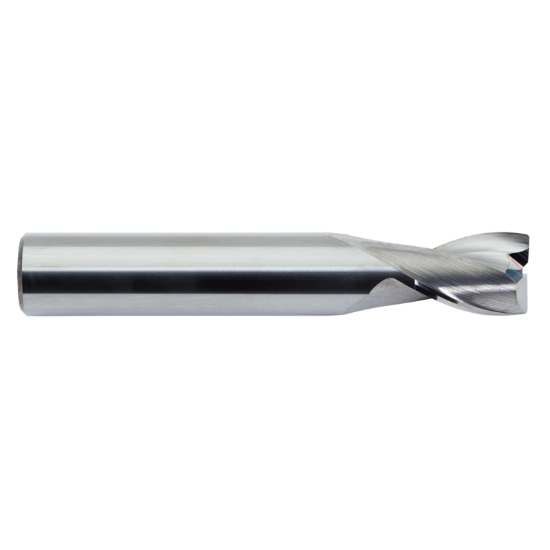

M.A. FORD 13515750F DIA 4MM SH 0.1575 LOC 0.1890 OAL2.0079 End Mill Standard Flute Standard Helix Carbide Fordlube Single End Corner Radius0.0079 0.20MM TuffCut® AL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF17260
Delivery date: 3-5 days
$44.98
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Fordlube Titanium DiBoride (TiB2) is a unique coating with a low aluminum affinity, smooth surface finish and high hardness.

Products specifications
Attribute name Attribute value
General Product Information
Additional Key Information 2 Corner Radius
Package Size 1
Material # Material#25, Material#20, Material#42
Shipping State Iowa
Sold by Pieces 1
Additional Key Information 1 End Mill
Additional Key Information 3 Standard Flute
Application Side Milling, Copy Milling, Face Milling, Profile Milling
Coating Fordlube
Additional Key Information 4 Standard Helix
Performance Rating High Performance
Uncategorized
Made In USA Yes
Dimensional Specifications
Dimension Description 0.157 x 0.157 x 0.189 x 2.008
Flutes/Inserts 2
Length Of Cut 0.1890 4.80MM
Inch/Metric Metric
Machine Side Connection Size 0.1575 4.00MM
Helix Angle 30°
Machine Side CYLINDRICAL0.1575
Overall Len 2.0079 51.00MM
Cutter Dia 0.1574 4.00MM
Cutter Style Carbide Bull Nose Finisher
Corner Radius 0.0079 0.20MM
Length Type Standard
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.1574 4.00MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
