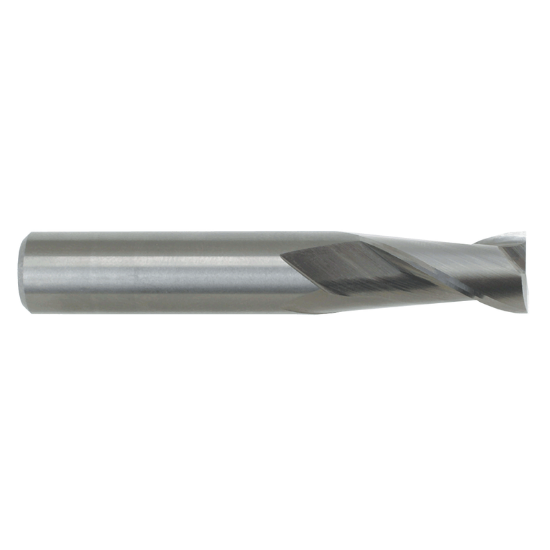

M.A. FORD 12115620R.030 DIA 5/32 SH 0.1875 LOC 0.50 OAL2.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.0300 0.76MM TuffCut® GP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF16285
Delivery date: 3-5 days
$39.64
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Sold by Pieces 1
Material # Material#3, Material#8, Material#17, Material#15
Additional Key Information 1 End Mill
Additional Key Information 3 Standard Flute
Application Side Milling, Slot Milling, Face Milling, Profile Milling, Copy Milling
Additional Key Information 2 Corner Radius
Package Size 1
Shipping State Iowa
Additional Key Information 4 Standard Helix
Performance Rating General Performance
Uncategorized
Made In USA Yes
Dimensional Specifications
Dimension Description 0.156 x 0.188 x 0.500 x 2.000
Helix Angle 30°
Cutter Style Carbide Bull Nose Finisher
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Length Of Cut 0.5000 12.70MM
Corner Radius 0.0300 0.76MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Machine Side CYLINDRICAL0.1875
Flutes/Inserts 2
Machine Side Connection Size 0.1875 4.76MM
Cutter Dia 0.1563 3.97MM - 5/32
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Overall Len 2.0000 50.80MM
Length Type Standard
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
