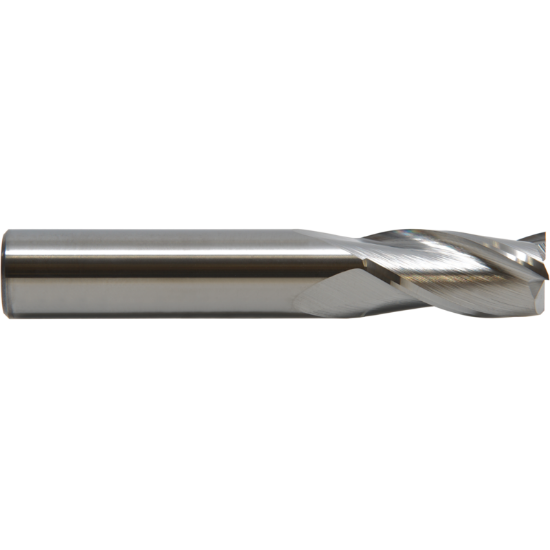

M.A. FORD 11612500R.015 DIA 1/8 SH 0.1250 LOC 0.3750 OAL1.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.0150 0.38MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF16122
Delivery date: 3-5 days
$51.03
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Additional Key Information 2 Corner Radius
Additional Key Information 4 Standard Helix
Material # Material#18, Material#2, Material#8, Material#15
Additional Key Information 3 Standard Flute
Application Profile Milling, Slot Milling, Side Milling, Copy Milling, Face Milling
Shipping State Iowa
Performance Rating General Performance
Sold by Pieces 1
Additional Key Information 1 End Mill
Package Size 1
Uncategorized
Made In USA Yes
Dimensional Specifications
Length Type Standard
End Of Tool Shape Corner Radius
Machine Side Connection Size 0.1250 3.18MM
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Flutes/Inserts 3
Dimension Description 0.125 x 0.125 x 0.375 x 1.500
Overall Len 1.5000 38.10MM
Cutter Style Carbide Bull Nose Finisher
Cutter Dia 0.1250 3.18MM - 1/8
Machine Side CYLINDRICAL0.1250
Helix Angle 30°
Corner Radius 0.0150 0.38MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Length Of Cut 0.3750 9.53MM
Inch/Metric Inch
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
