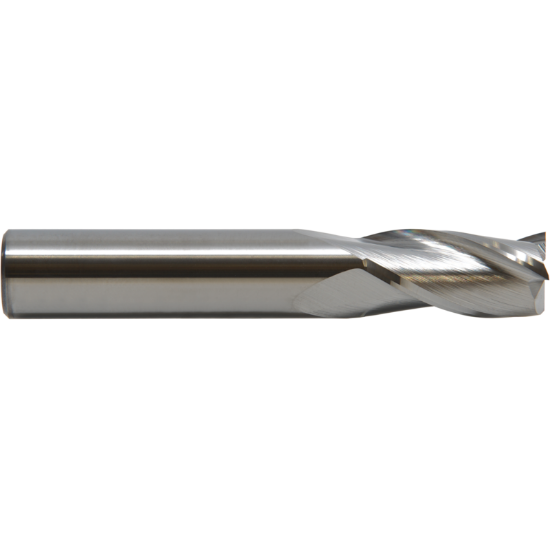

M.A. FORD 11609370R.015 DIA 3/32 SH 0.1250 LOC 0.2812 OAL1.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.0150 0.38MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF16116
Delivery date: 3-5 days
$51.03
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#18, Material#8, Material#2, Material#15
Application Face Milling, Profile Milling, Slot Milling, Side Milling, Copy Milling
Package Size 1
Additional Key Information 1 End Mill
Additional Key Information 3 Standard Flute
Sold by Pieces 1
Shipping State Iowa
Performance Rating General Performance
Additional Key Information 2 Corner Radius
Additional Key Information 4 Standard Helix
Uncategorized
Made In USA Yes
Dimensional Specifications
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Single/Double End Single End
Cutter Dia 0.0938 2.38MM - 3/32
Machine Side Connection Size 0.1250 3.18MM
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Length Type Standard
Dimension Description 0.094 x 0.125 x 0.281 x 1.500
Machine Side CYLINDRICAL0.1250
End Of Tool Shape Corner Radius
Helix Angle 30°
Corner Radius 0.0150 0.38MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Overall Len 1.5000 38.10MM
Flutes/Inserts 3
Length Of Cut 0.2813 7.15MM
Cutter Style Carbide Bull Nose Finisher
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
