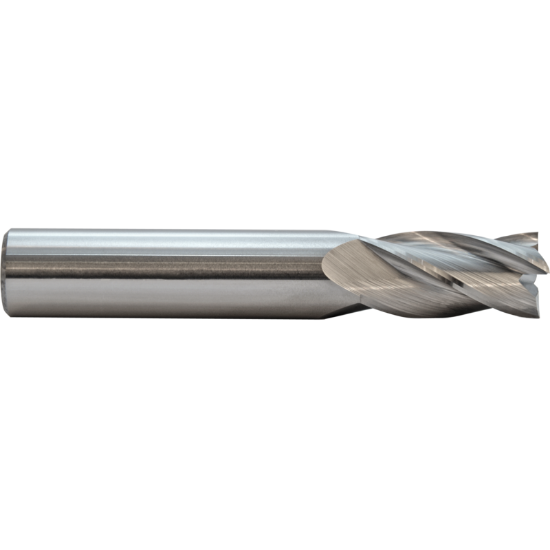

M.A. FORD 11123622 DIA 6MM SH 0.2362 LOC 0.7874 OAL2.5197 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.0295 0.75MM TuffCut® GP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF51426
Delivery date: 3-5 days
$44.17
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Iowa
Material # Material#15, Material#8, Material#3, Material#17
Application Copy Milling, Face Milling, Profile Milling, Side Milling, Slot Milling
Package Size 1
Additional Key Information 2 Corner Radius
Additional Key Information 4 Standard Helix
Sold by Pieces 1
Performance Rating General Performance
Additional Key Information 1 End Mill
Additional Key Information 3 Standard Flute
Uncategorized
Made In USA Yes
Dimensional Specifications
Dimension Description 0.236 x 0.236 x 0.787 x 2.520
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.2362 6.00MM
Corner Radius 0.0295 0.75MM
Single/Double End Single End
Flutes/Inserts 4
Inch/Metric Metric
Machine Side CYLINDRICAL0.2362
Helix Angle 30°
Length Of Cut 0.7874 20.00MM
Cutter Style Carbide Bull Nose Finisher
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutter Dia 0.2362 6.00MM
End Of Tool Shape Corner Radius
Machine Side Connection Size 0.2362 6.00MM
Overall Len 2.5197 64.00MM
Length Type Standard
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
