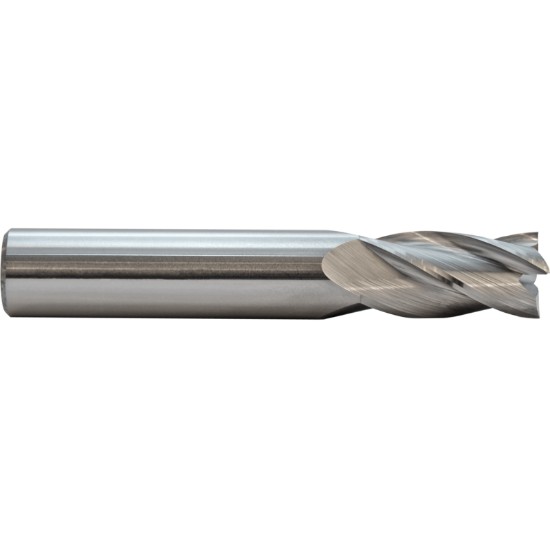

M.A. FORD 11123440R.020 DIA 15/64 SH 0.2500 LOC 0.7500 OAL2.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.0200 0.51MM TuffCut® GP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF15072
Delivery date: 3-5 days
$50.98
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling, Copy Milling, Profile Milling, Slot Milling
Package Size 1
Additional Key Information 1 End Mill
Material # Material#17, Material#15, Material#3, Material#8
Additional Key Information 2 Corner Radius
Additional Key Information 4 Standard Helix
Shipping State Iowa
Sold by Pieces 1
Performance Rating General Performance
Additional Key Information 3 Standard Flute
Uncategorized
Made In USA Yes
Dimensional Specifications
Length Of Cut 0.7500 19.05MM
Single/Double End Single End
Helix Angle 30°
Cutter Dia 0.2344 5.95MM - 15/64
Flutes/Inserts 4
Length Type Standard
Dimension Description 0.234 x 0.250 x 0.750 x 2.500
Cutter Style Carbide Bull Nose Finisher
Corner Radius 0.0200 0.51MM
Machine Side CYLINDRICAL0.2500
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Machine Side Connection Size 0.2500 6.35MM
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Overall Len 2.5000 63.50MM
End Of Tool Shape Corner Radius
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
