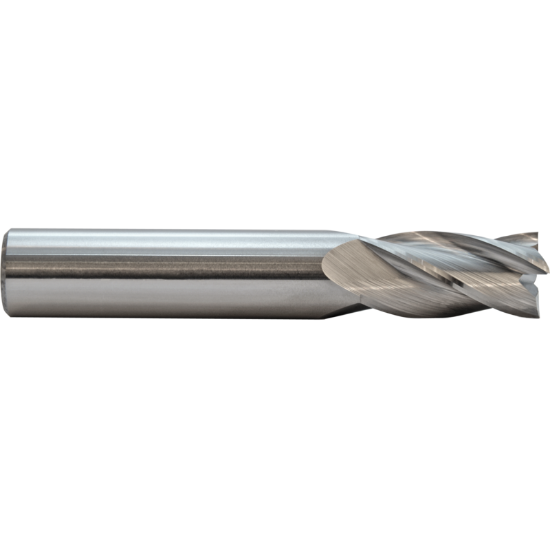

M.A. FORD 11119683 DIA 5MM SH 0.1969 LOC 0.7874 OAL2.0079 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.0394 1.00MM TuffCut® GP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF51440
Delivery date: 3-5 days
$38.53
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#3, Material#17, Material#15, Material#8
Additional Key Information 4 Standard Helix
Application Copy Milling, Side Milling, Face Milling, Profile Milling, Slot Milling
Performance Rating General Performance
Sold by Pieces 1
Additional Key Information 1 End Mill
Additional Key Information 3 Standard Flute
Additional Key Information 2 Corner Radius
Package Size 1
Shipping State Iowa
Uncategorized
Made In USA Yes
Dimensional Specifications
Cutter Style Carbide Bull Nose Finisher
Machine Side Connection Size 0.1969 5.00MM
Shank/Pilot Dia 0.1969 5.00MM
Length Type Standard
Corner Radius 0.0394 1.00MM
Cutter Dia 0.1968 5.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Length Of Cut 0.7874 20.00MM
Dimension Description 0.197 x 0.197 x 0.787 x 2.008
Helix Angle 30°
Overall Len 2.0079 51.00MM
Flutes/Inserts 4
Inch/Metric Metric
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
End Of Tool Shape Corner Radius
Single/Double End Single End
Machine Side CYLINDRICAL0.1969
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
