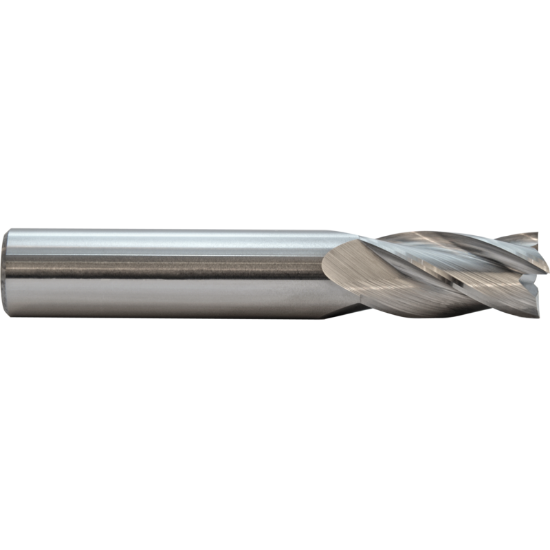

M.A. FORD 11118752 DIA 3/16 SH 0.1875 LOC 0.6250 OAL2.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.0200 0.51MM TuffCut® GP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF51407
Delivery date: 3-5 days
$36.20
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#15, Material#3, Material#8, Material#17
Sold by Pieces 1
Additional Key Information 2 Corner Radius
Package Size 1
Application Face Milling, Profile Milling, Slot Milling, Copy Milling, Side Milling
Shipping State Iowa
Performance Rating General Performance
Additional Key Information 4 Standard Helix
Additional Key Information 1 End Mill
Additional Key Information 3 Standard Flute
Uncategorized
Made In USA Yes
Dimensional Specifications
Corner Radius 0.0200 0.51MM
Machine Side Connection Type Cylindrical
Helix Angle 30°
Cutter Style Carbide Bull Nose Finisher
Dimension Description 0.188 x 0.188 x 0.625 x 2.000
Machine Side CYLINDRICAL0.1875
Flutes/Inserts 4
Length Of Cut 0.6250 15.88MM
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
End Of Tool Shape Corner Radius
Single/Double End Single End
Machine Side Connection Size 0.1875 4.76MM
Cutter Dia 0.1875 4.76MM - 3/16
Tool Material Carbide
Inch/Metric Inch
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Overall Len 2.0000 50.80MM
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
