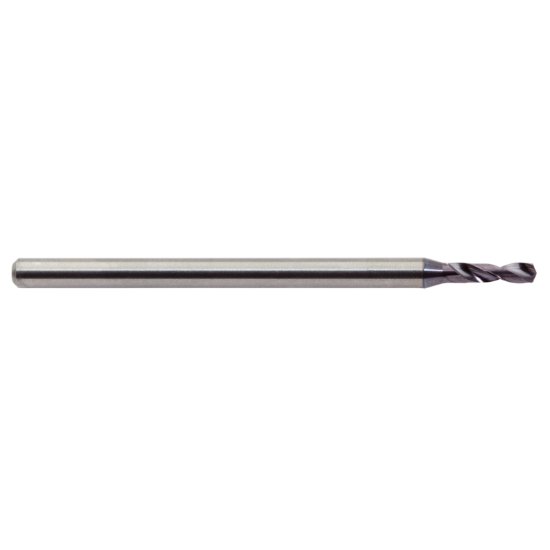

Picture of M.A. Ford MPDCSM0270A Carbide Drill Coolant Thru Carbide 142° 0.106 Dia 0.118 Shank 2.362 OAL 2 Flute 0.433 Flute Length Carbide AlTiN

M.A. Ford MPDCSM0270A Carbide Drill Coolant Thru Carbide 142° 0.106 Dia 0.118 Shank 2.362 OAL 2 Flute 0.433 Flute Length Carbide AlTiN

Part Number: MAF04908 ISO: MPDCSM0270A
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1119059
Vendor: Sussex Tool and Supply
$102.05

Description

M.A. FORD MPDCSM0270A 2.70MM X 11 ALTIMA DRILL Carbide AlTiN Twister® Flute 0.4330 11.00MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Length Type Standard
Dimensions & Sizing
Overall Length 2.3622 60.00MM
Shank/Pilot Dia 0.1181 3.00MM
Flutes/Inserts 2
Tool Dia 0.1063 2.70MM
Flute Length 0.4330 11.00MM
Geometry & Angles
Included Angle 142°
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Cut Dia Min 0.1063 2.70MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
