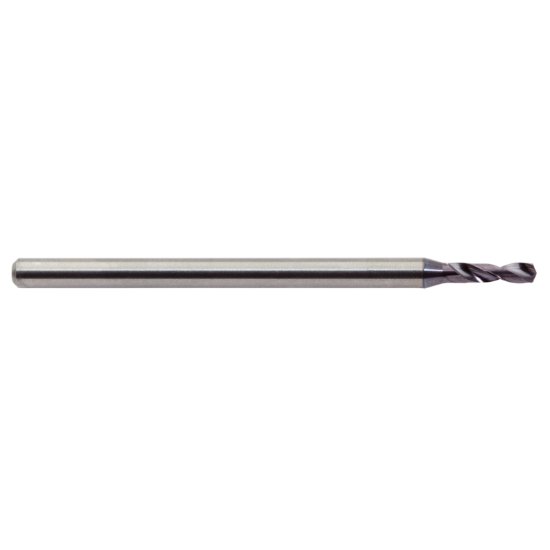

Picture of M.A. Ford MPDCSM0195A Carbide Drill Coolant Thru Carbide 142° 0.076 Dia 0.118 Shank 1.968 OAL 2 Flute 0.315 Flute Length Carbide AlTiN

M.A. Ford MPDCSM0195A Carbide Drill Coolant Thru Carbide 142° 0.076 Dia 0.118 Shank 1.968 OAL 2 Flute 0.315 Flute Length Carbide AlTiN

Part Number: MAF04893 ISO: MPDCSM0195A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1119044
Vendor: Sussex Tool and Supply
$64.23
M.A. FORD MPDCSM0195A 1.95MM X 8 ALTIMA DRILL Carbide AlTiN Twister® Flute 0.3150 8.00MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Coating ALTIN
Mach Side Connection Size 0.1181 3.00MM
Overall Length 1.9685 50.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.1181 3.00MM
Flutes/Inserts 2
Tool Dia 0.0768 1.95MM
Type Of Tool Drill
Included Angle 142°
Flute Length 0.3150 8.00MM
Cut Dia Min 0.0768 1.95MM
Drill Length Type Standard
