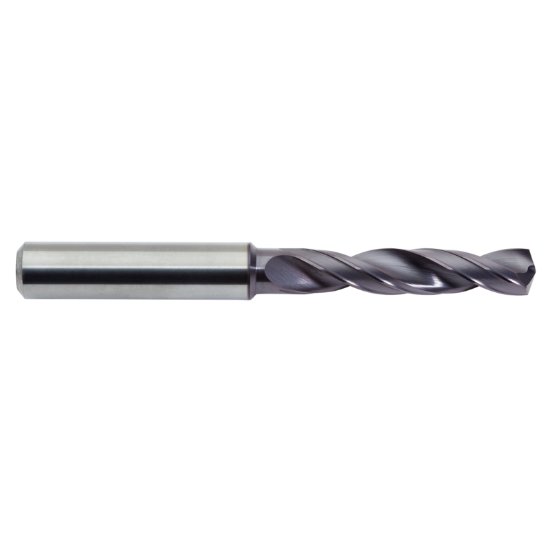

Picture of M.A. Ford CXDSS1406AP Carbide Drill Coolant Thru Carbide 140° - 142° 0.140 Dia 0.156 Shank 2.440 OAL 2 Flute 0.787 Flute Length Carbide AlTiN

M.A. Ford CXDSS1406AP Carbide Drill Coolant Thru Carbide 140° - 142° 0.140 Dia 0.156 Shank 2.440 OAL 2 Flute 0.787 Flute Length Carbide AlTiN

Part Number: MAF06625 ISO: CXDSS1406AP
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1118985
Vendor: Sussex Tool and Supply
$77.73

Description

M.A. FORD CXDSS1406AP CXD DRL 9/64 SOLID STUB Carbide AlTiN Cyclone XD 3.0XD Flute 0.7870 19.99MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Multi Spindle Yes
Dimensions & Sizing
Overall Length 2.4400 61.98MM
Shank/Pilot Dia 0.1562 3.96MM - 5/32
Flutes/Inserts 2
Tool Dia 0.1406 3.57MM - 9/64 - #28
Flute Length 0.7870 19.99MM
Dia Deep 3.0x Dia
Geometry & Angles
Included Angle 140° - 142°
Performance & Capacity
Cut Rating Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron, High Temp
Cut Dia Min 0.1406 3.57MM - 9/64 - #28
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
